CW617N Forging Brass

CW617N Forging Brass Specification

Tolerance
1.5 to 125 Millimeter (mm)

Usage
Automotive, Builders Hardware, Consumer Fasteners, Industrial Plumbing

Color
Golden

Surface Finishing
Bright

Application
Automotive, Builders Hardware, Consumer Fasteners, Industrial Plumbing

Finish
Extruded & Drawn

Dimension (L*W*H)
16 Foot (ft)

Product Type
Architecture, Builders Hardware

Size
1.5mm to 125mm

Material
Brass

Processing Type
Extruded & Drawn

Grade
CW617N

Alloy
Yes

Temper
1/2 Hard

Length
16 Foot (ft)

Shape
Round

Diameter
1.5 Millimeter (mm)

Warranty
NA

CW617N Forging Brass Trade Information

Minimum Order Quantity
2000 Kilograms

Delivery Time
4 Week

About CW617N Forging Brass

CW617N are the reference materials for hot working. The mean Lead content provides good machinability of the drop-forged part. Because of its, Composition the alloy is also suited for the production of drawn and complex profile.

Chemical Composition

Elements	Min (%)	Max (%)
Cu	57.00	59.00
Al	-	0.05
Fe	-	0.30
Ni	-	0.30
Pb	1.60	2.50
Sn	-	0.30
Total Others	-	0.20
Zn	Remainder

Mechanical Properties According To EN12164 (As Per Temper R430)

Range (mm)	From	To	UTS Min (N/mm)	PS Min (N/mm)	Elongation Min (%)	Hardness Min (HV)	Hardness Max (HV)

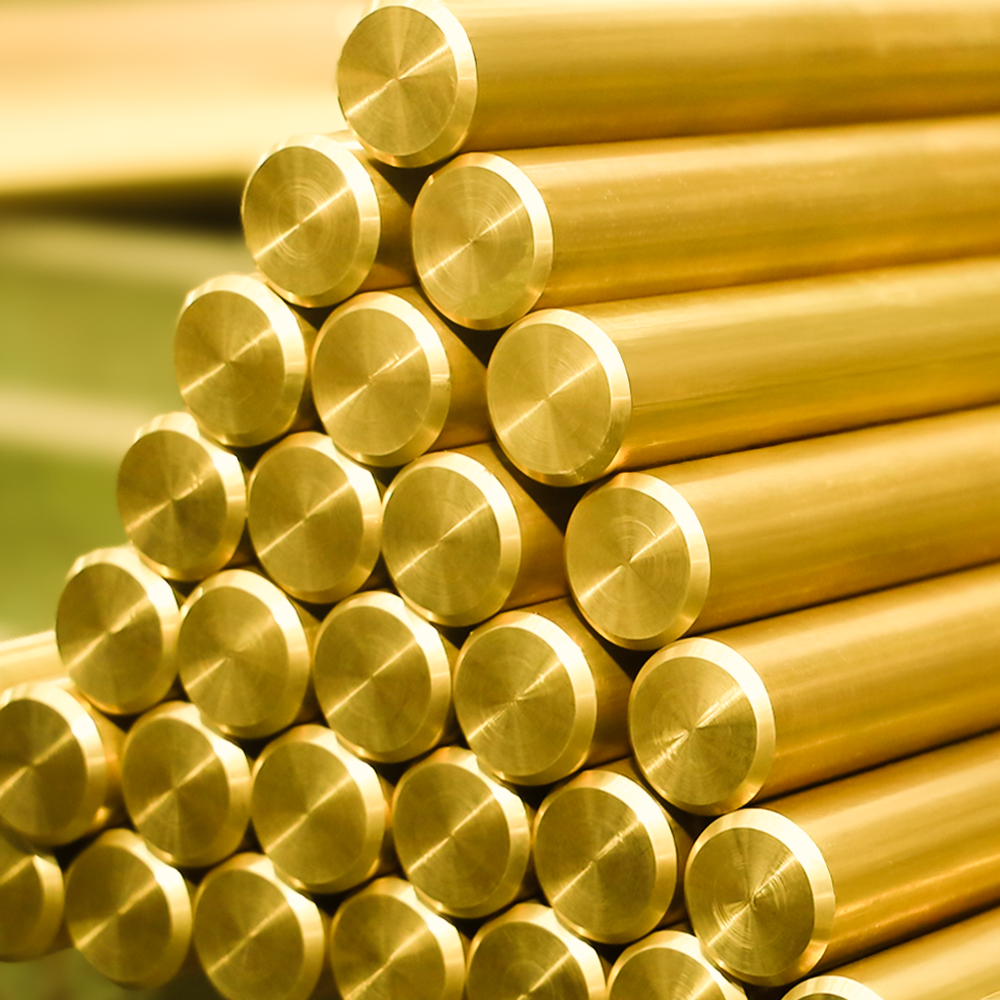

Round (Dia)	2	40	430	220	10	-	-

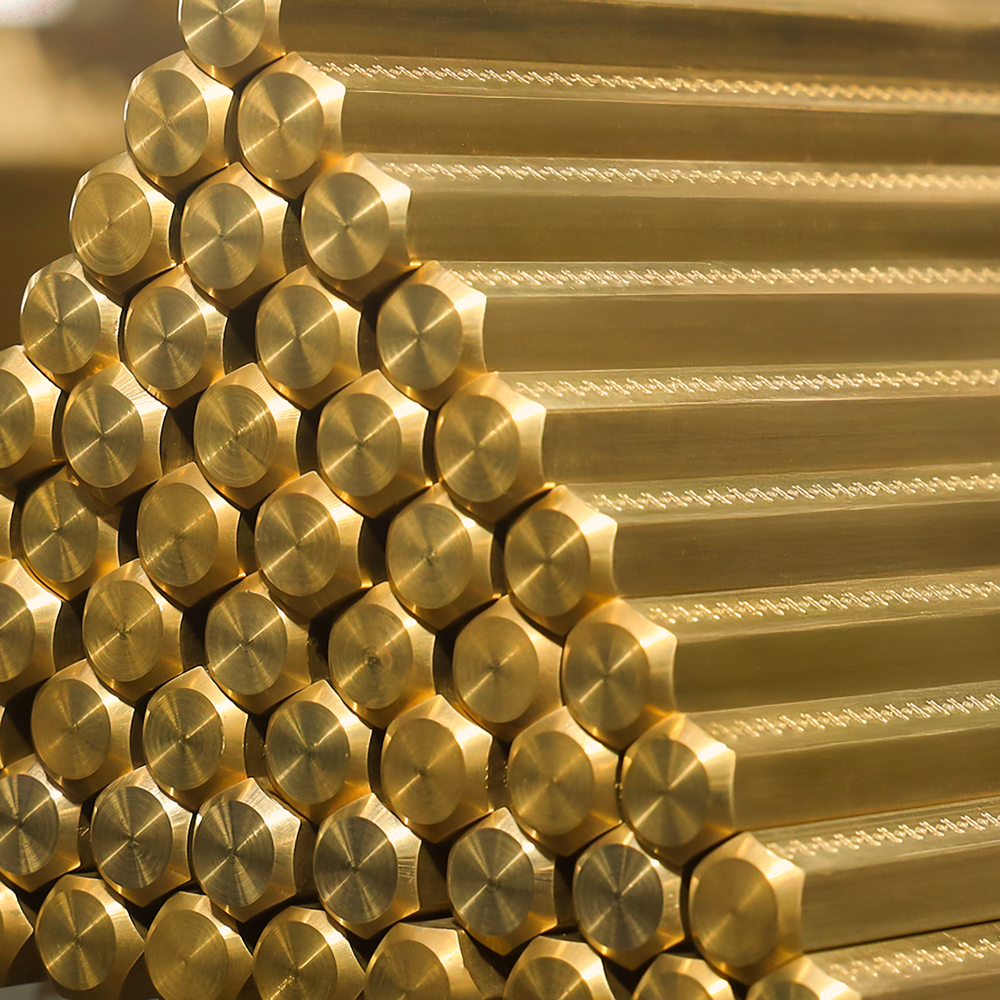

Hex (A/F)	2	35	430	220	10	-	-

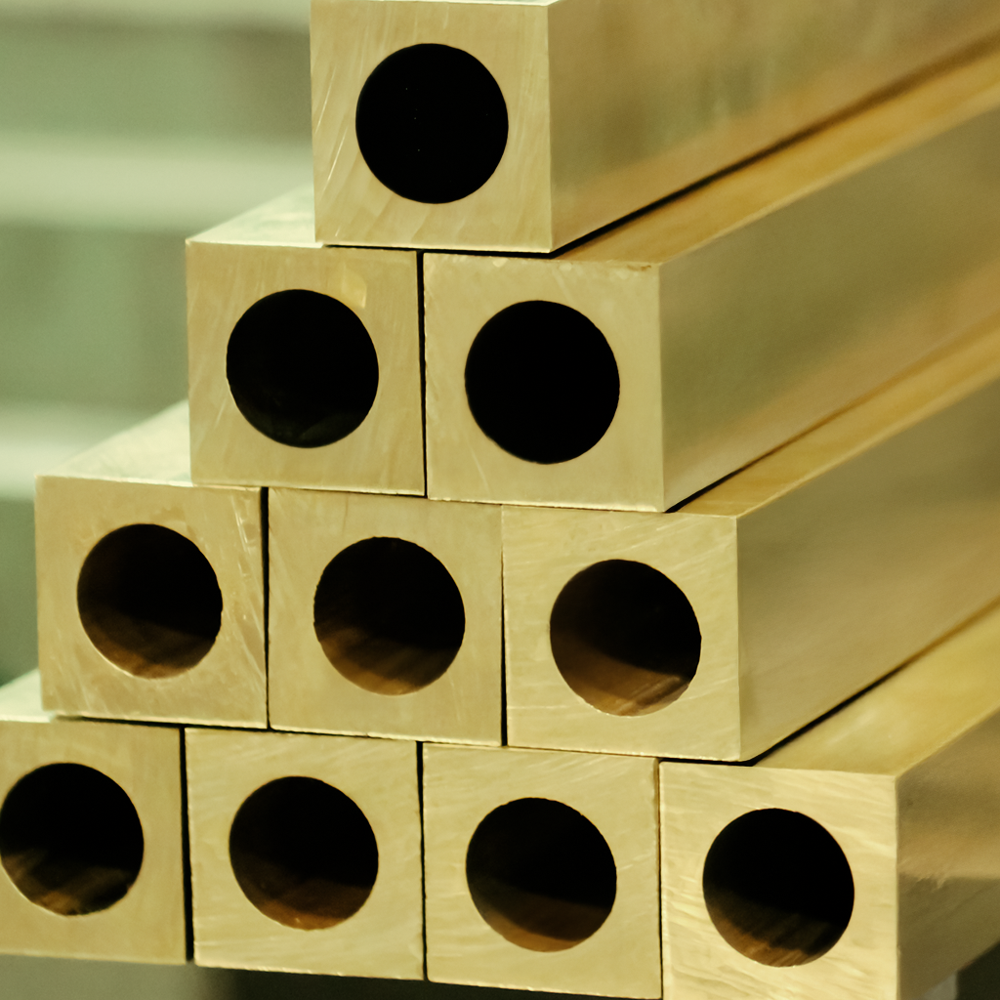

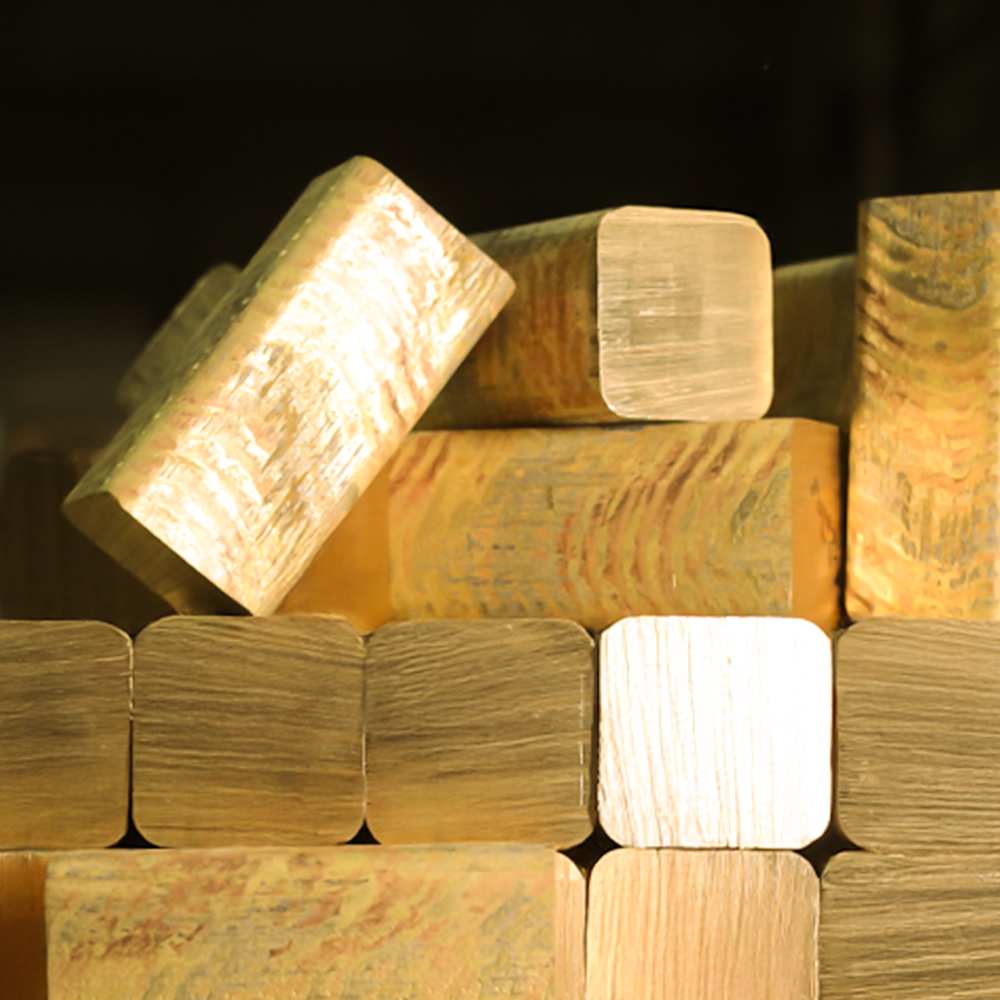

Square (A/F)	2	35	430	220	10	-	-

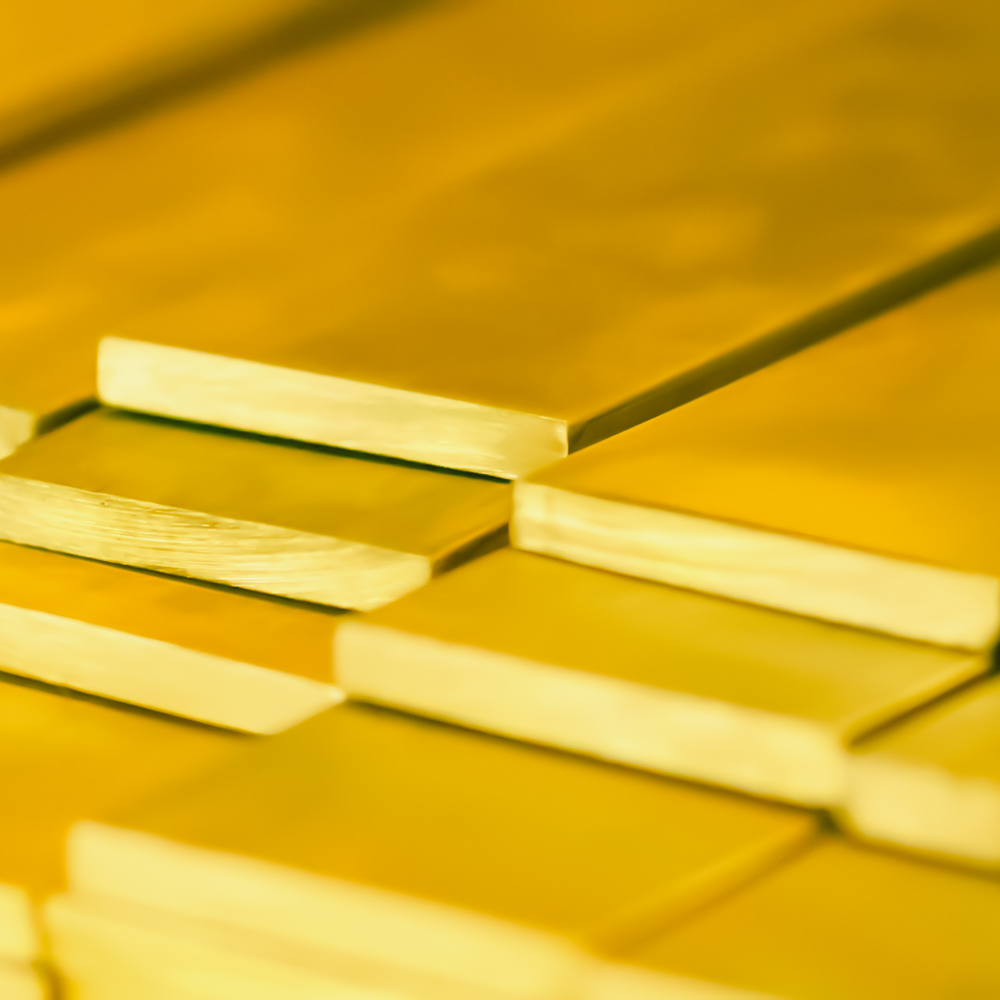

Rectangle (Thickness)	3	40	430	220	10	-	-

Physical Properties

Physical Properties	Metric	English
Density	8.40 g/cc	0.303 lb/in3
CTE, linear	26.0 m/m-C	14.4 in/in-F
Specific Heat Capacity	0.380 J/g-C	0.0908 BTU/lb-F
Thermal Conductivity	113 W/m-K	784 BTU-in/hr-ft-F
Melting Point	880-900 C	1620 1650 F
Solidus	880 C	1620 F
Liquidus	900 C	1650F
