CW616N Forging Brass

CW616N Forging Brass Specification

Surface Finishing
Bright

Product Type
Architecture, Builders Hardware

Material
Brass

Usage
Automotive, Builders Hardware, Consumer Fasteners, Industrial Plumbing

Tolerance
1.5 to 125 Millimeter (mm)

Processing Type
Extruded & Drawn

Color
Golden

Application
Automotive, Builders Hardware, Consumer Fasteners, Industrial Plumbing

Finish
Extruded & Drawn

Dimension (L*W*H)
16 Foot (ft)

Size
1.5mm to 125mm

Grade
CW616N

Alloy
Yes

Temper
1/2 Hard

Length
16 Foot (ft)

Shape
Round

Diameter
1.5 Millimeter (mm)

Warranty
NA

CW616N Forging Brass Trade Information

Minimum Order Quantity
2000 Kilograms

Delivery Time
4 Week

About CW616N Forging Brass

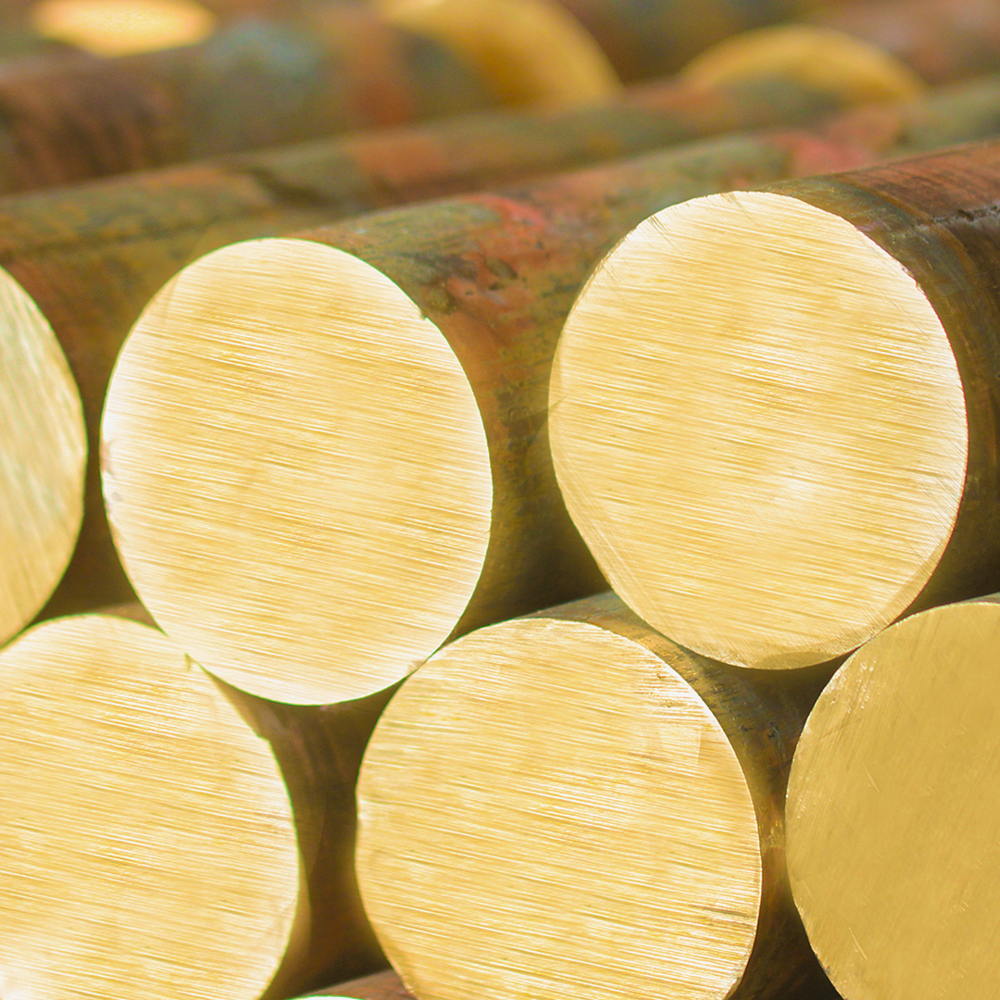

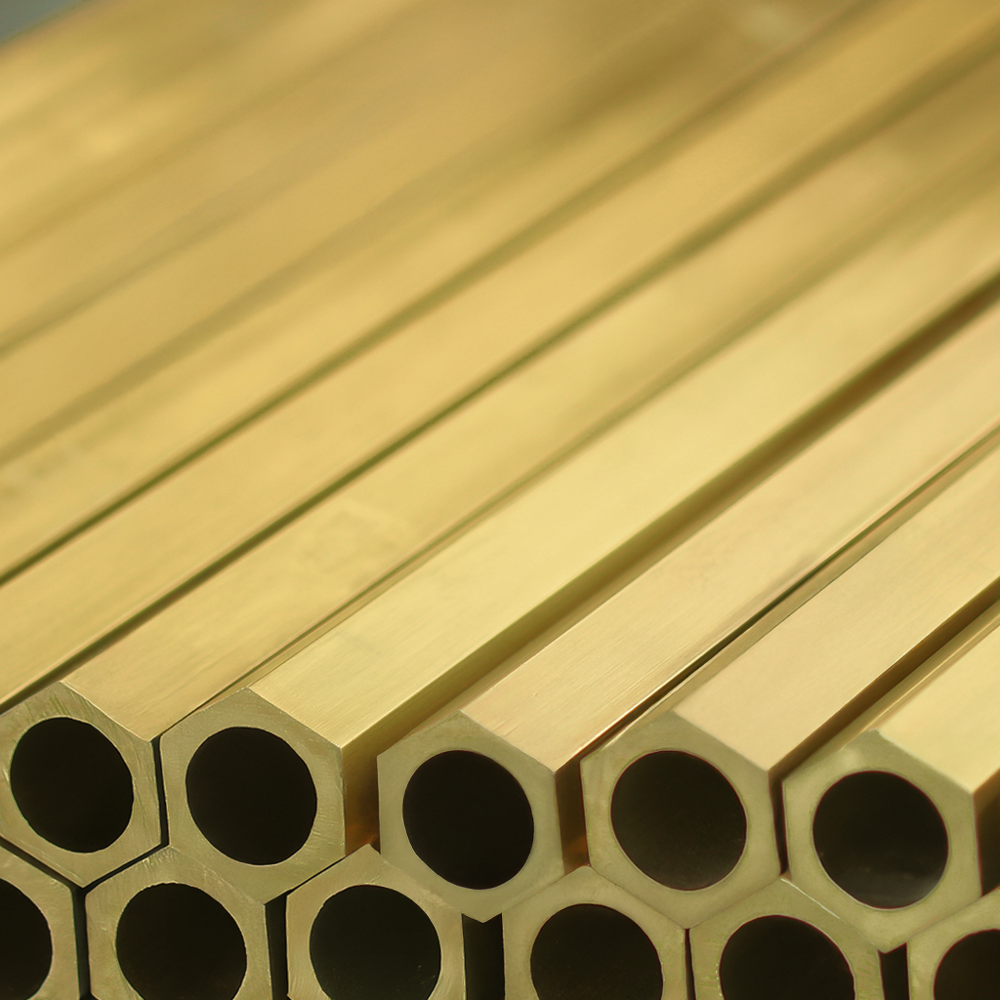

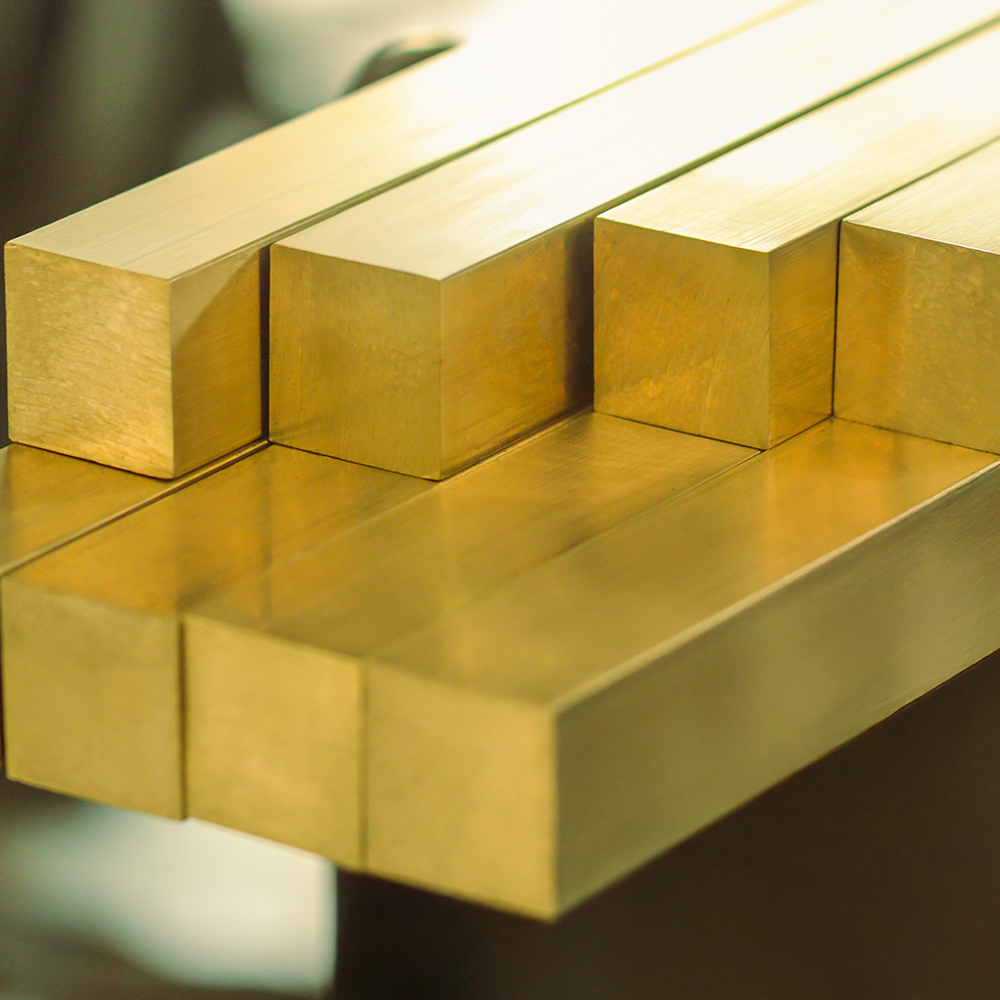

CW616, brass, is a readily extrudable leaded alpha/beta brass with a small aluminium addition, which gives a bright golden colour. The lead gives free cutting properties. CW616 is available as extruded rods and flats which are typically used in builders hardware.

Chemical Composition

Elements	Min (%)	Max (%)
Cu	57.00	59.00
Pb	1.00	2.00
Sn	-	0.20
Fe	- -	0.20
Al	0.05	0.30
Ni	-	0.20
Total Others	-	0.20
Zn	Remainder

Mechanical Properties According To EN12165 (As Per Temper H080)

Range (mm)	From	To	UTS Min	PS Min)	Elongation Min (%)	Hardness Min (HV)	Hardness Max (HV)
Round (Dia)	1.5	75	-	-	-	80	170
Hex (A/F)	3	70	-	-	-	80	170
Square (A/F)	3	60	-	-	-	80	170
Rectangle (Thickness)	0	50	-	-	-	80	170

Physical Properties

Physical Properties	Metric	English
Density	8.40 g/cc	0.303 lb/in3
CTE, linear	26.0 m/m-C	14.4 in/in-F
Specific Heat Capacity	0.380 J/g-C	0.0908 BTU/lb-F
Thermal Conductivity	113 W/m-K	784 BTU-in/hr-ft-F
Melting Point	880-900 C	1620 1650 F
Solidus	880 C	1620 F
Liquidus	900 C	1650F
