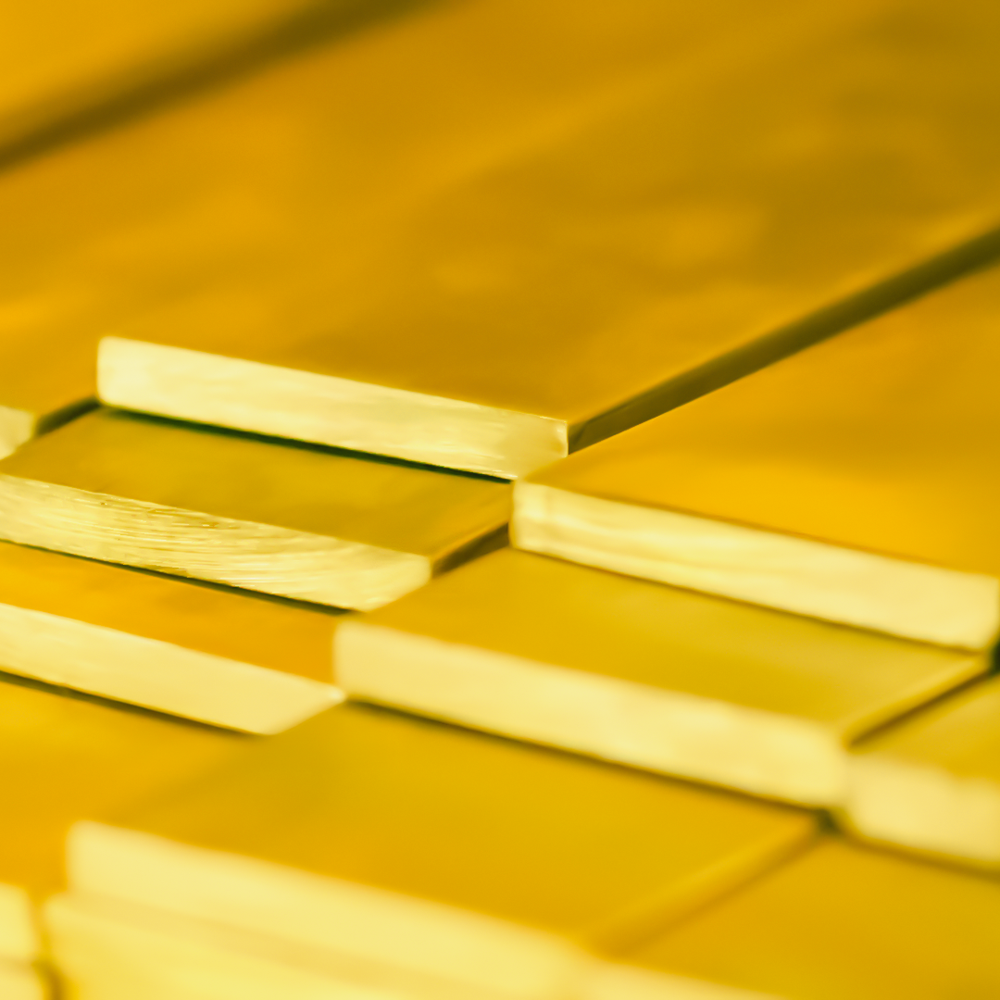

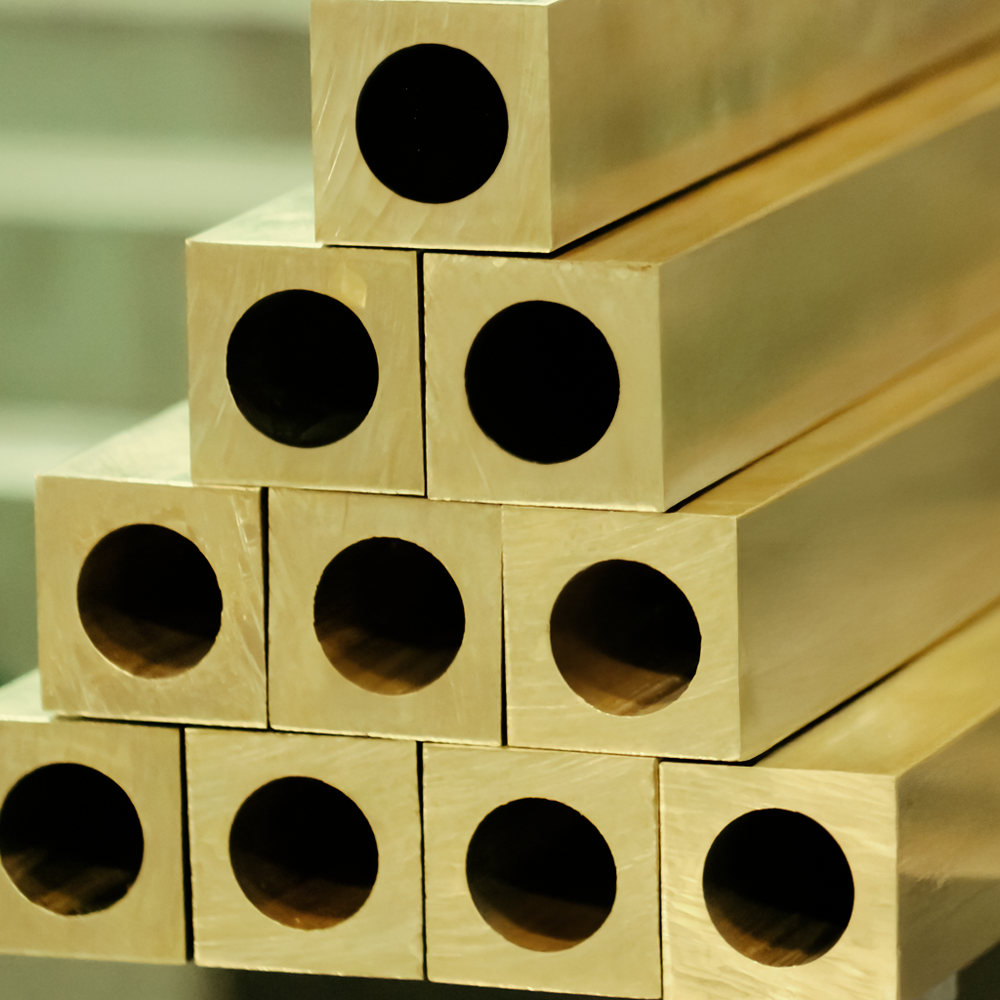

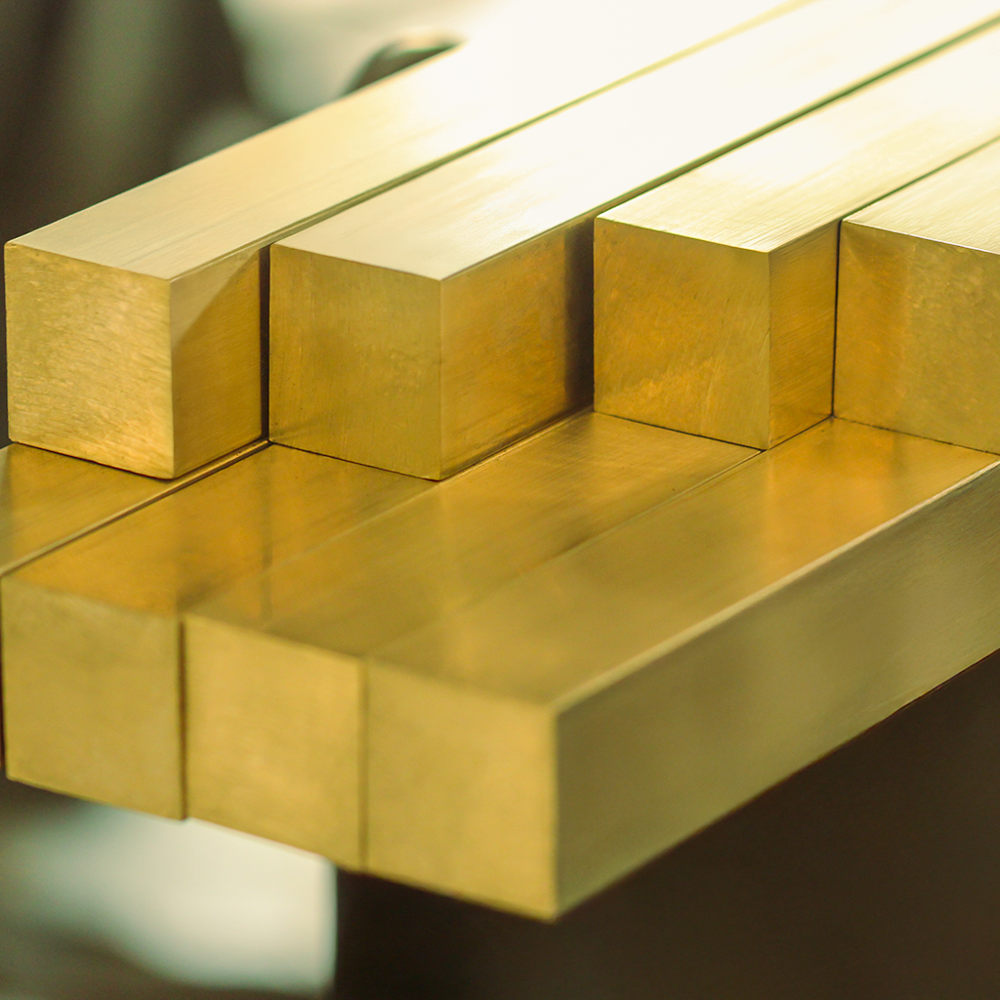

IS 319 GR II Free Machining Brass

IS 319 GR II Free Machining Brass Specification

Color
Golden

Application
Automotive, Builders Hardware, Consumer Fasteners, Industrial Plumbing

Processing Type
Extruded & Drawn

Material
Brass

Dimension (L*W*H)
16 Foot (ft)

Usage
Automotive, Builders Hardware, Consumer Fasteners, Industrial Plumbing

Surface Finishing
Bright

Size
1.5mm to 125mm

Finish
Extruded & Drawn

Product Type
Bars, Rods, Billets, Coils, Hollows, Ingots

Tolerance
1.5 to 125 Millimeter (mm)

Grade
IS 319 GR II

Alloy
Yes

Temper
1/2 Hard

Length
16 Foot (ft)

Shape
Round

Diameter
1.5 Millimeter (mm)

Warranty
NA

IS 319 GR II Free Machining Brass Trade Information

Minimum Order Quantity
2000 Kilograms

Delivery Time
4 Week

About IS 319 GR II Free Machining Brass

IS 319 Gr II Free machining brass, produced from a combination of copper and zinc, has the highest machinability of all copper alloys, and is the standard against which all the others are compared to. IS 319 Gr II Brass, known for its strength and resistance to corrosion with properties closely resembling that of steel, is one of the most popular copper alloys used today. IS 319 Gr II Brass can be precision machined easily. Although ductile in its softened state, IS 319 Gr II Brass is a strong material to work with and maintains its strength even under some of the most demanding conditions. IS 319 Gr II Brass forms a thin protective patina, which, unlike steel and iron, will not rust when exposed to the atmosphere. As a high-density material, IS 319 Gr II Brass is ideal for heavy industrial parts. IS 319 Gr II Brass is also valued for its high polished finish. IS 319 Gr II Brass being available in Rounds, Flats, Squares, Hexagons, Shapes and Hollows.

Chemical Composition

Elements	Min (%)	Max (%)
Cu	60.00	63.00
Pb	2.50	3.70
Fe	-	0.35
Total Others	-	0.50
Zn	Remainder

Mechanical Properties according To IS 319 Gr II (As Per Temper HB)

Range (mm)	From	To	UTS Min (MPa)	PS Min	Elongation Min (%)	Hardness Min (HV)	Hardness Max (HV)
Round (Dia)	6	12	395	-	7	120	150
12	25	385	-	10	115	145
25	50	345	-	15	100	130
50	75	315	-	20	90	120
Hex (A/F)	6	12	395	-	7	120	150
12	25	385	-	10	115	145
25	50	345	-	15	100	130
50	70	315	-	20	90	120
Square (A/F)	6	12	395	-	7	120	150
12	25	385	-	10	115	145
25	50	345	-	15	100	130
50	60	315	-	20	90	120
Rectangle (Thickness)	6	12	395	-	7	120	150
12	25	385	-	10	115	145
25	50	345	-	12	100	130

Physical Properties

Melting Point Liquidus F	1650
Melting Point Solidus F	1630
Density lb/cu in. at 68F	0.307
Specific Gravity	8.5
Electrical Conductivity% IACS at 68F	26
Thermal Conductivity Btu/ sq ft/ ft hr/ F at 68F	67
Coefficient of Thermal Expansion 68-57210 per F (68 572F)	11.4
Specific Heat Capacity Btu/ lb /F at 68F	0.09
Modulus of Elasticity in Tension ksi	14000
Modulus of Rigidity ksi	5300

Fabrication Properties

Technique	Suitability
Soldering	Excellent
Brazing	Good
Oxyacetylene Welding	Not Recommended
Gas Shielded Arc Welding	Not Recommended
Coated Metal Arc Welding	Not Recommended
Spot Weld	Not Recommended
Seam Weld	Not Recommended
Butt Weld	Fair
Capacity for Being Cold Worked	Fair
Capacity for Being Hot Formed	Fair
Machinability Rating	100
