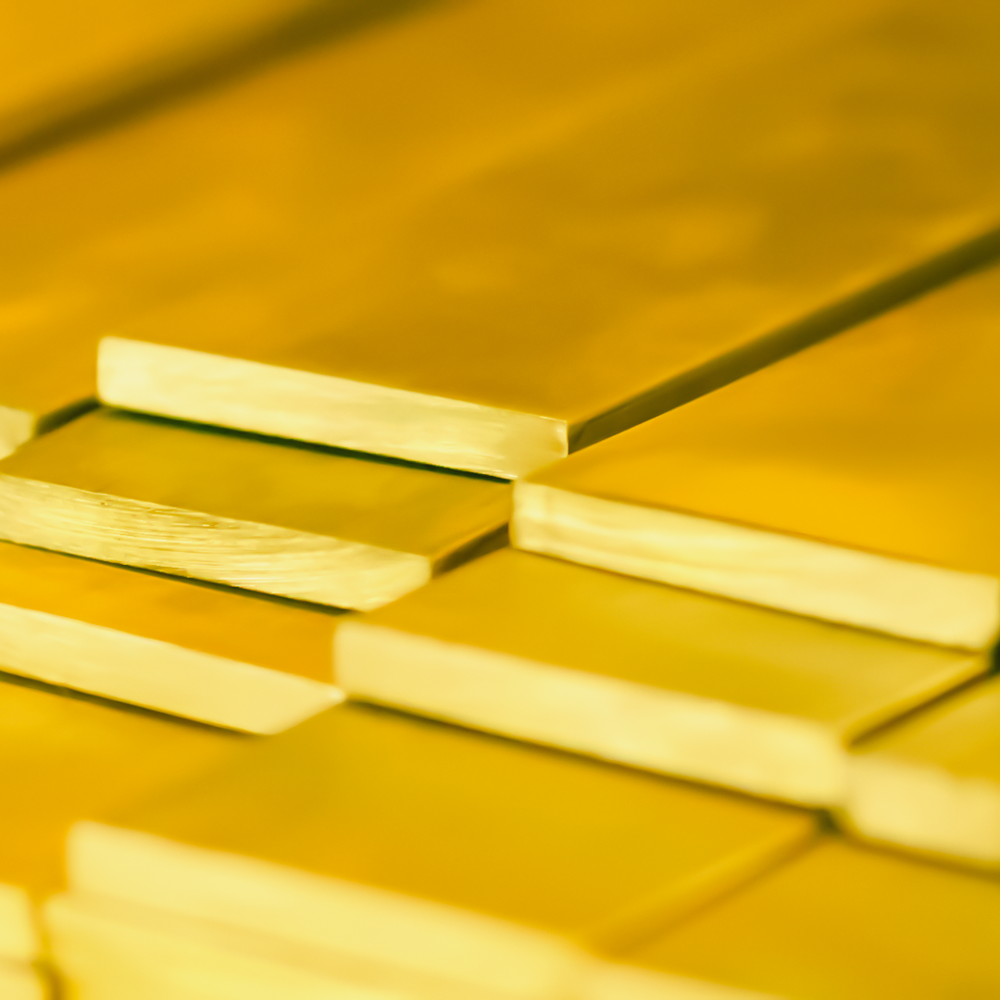

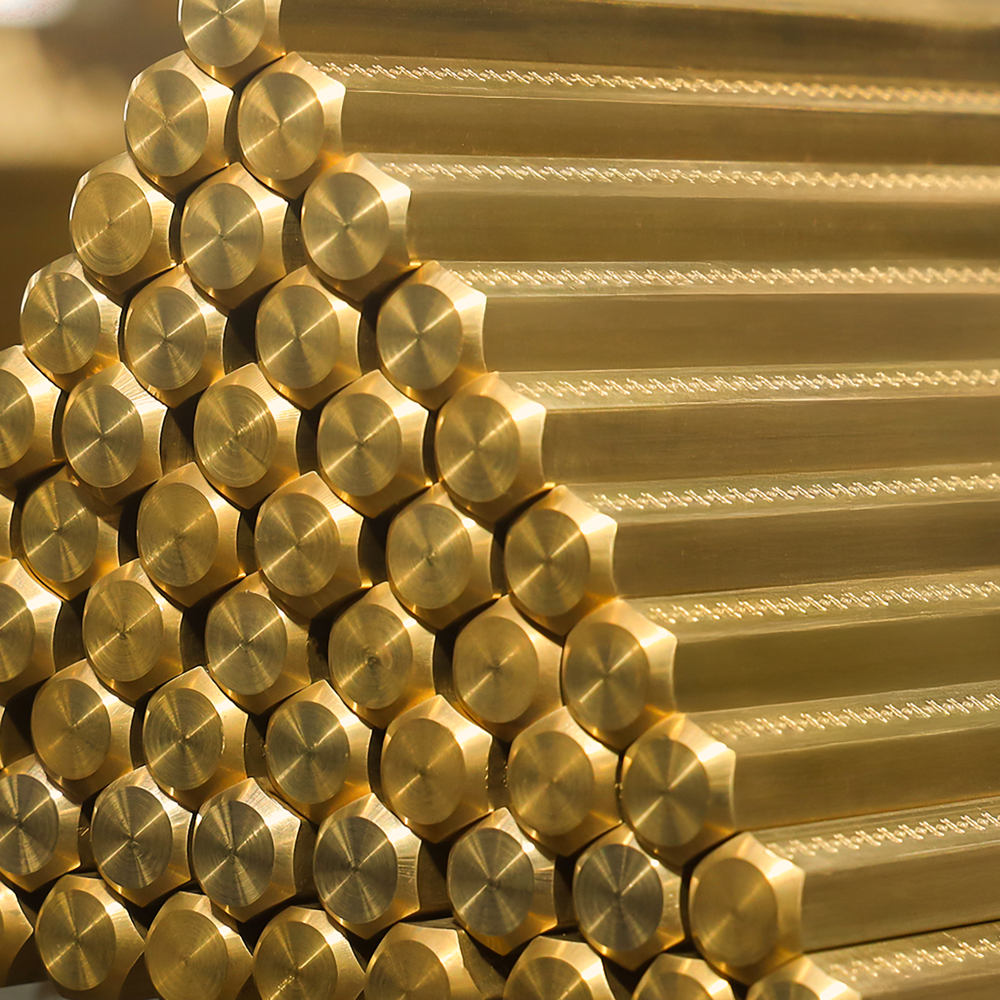

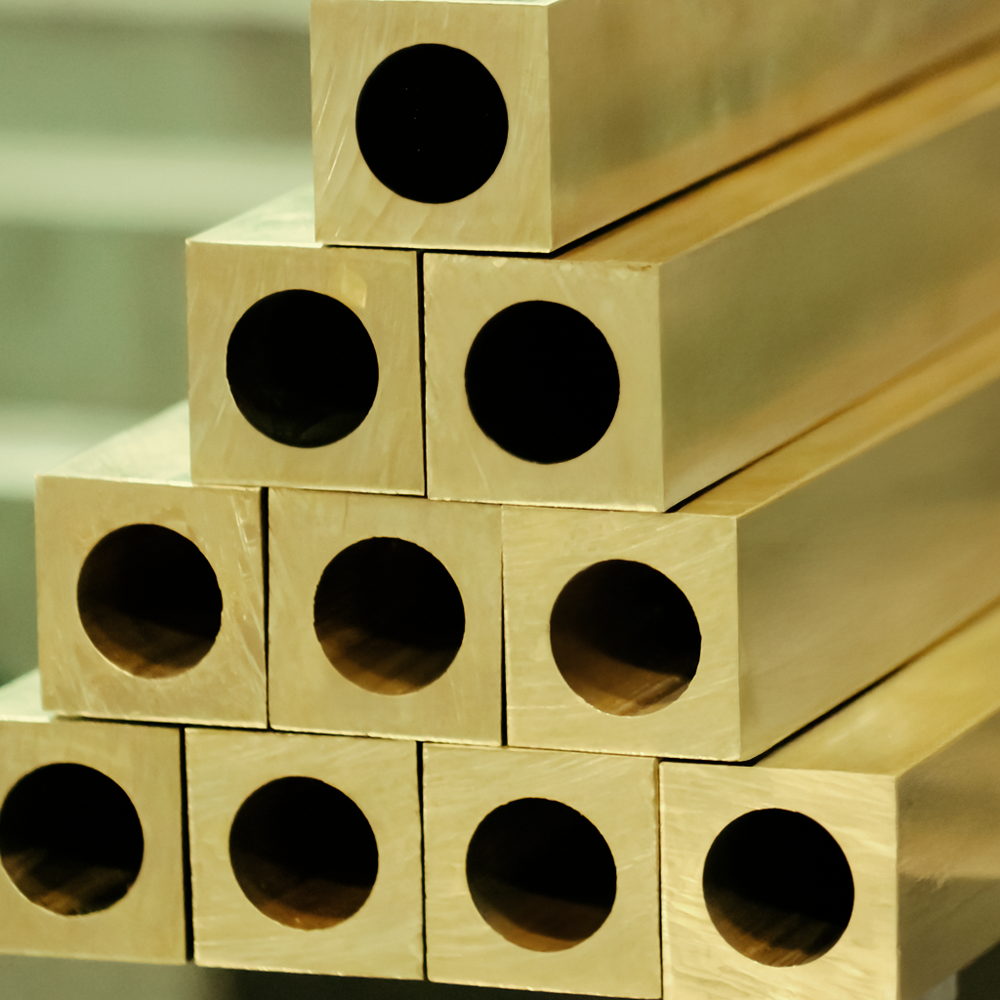

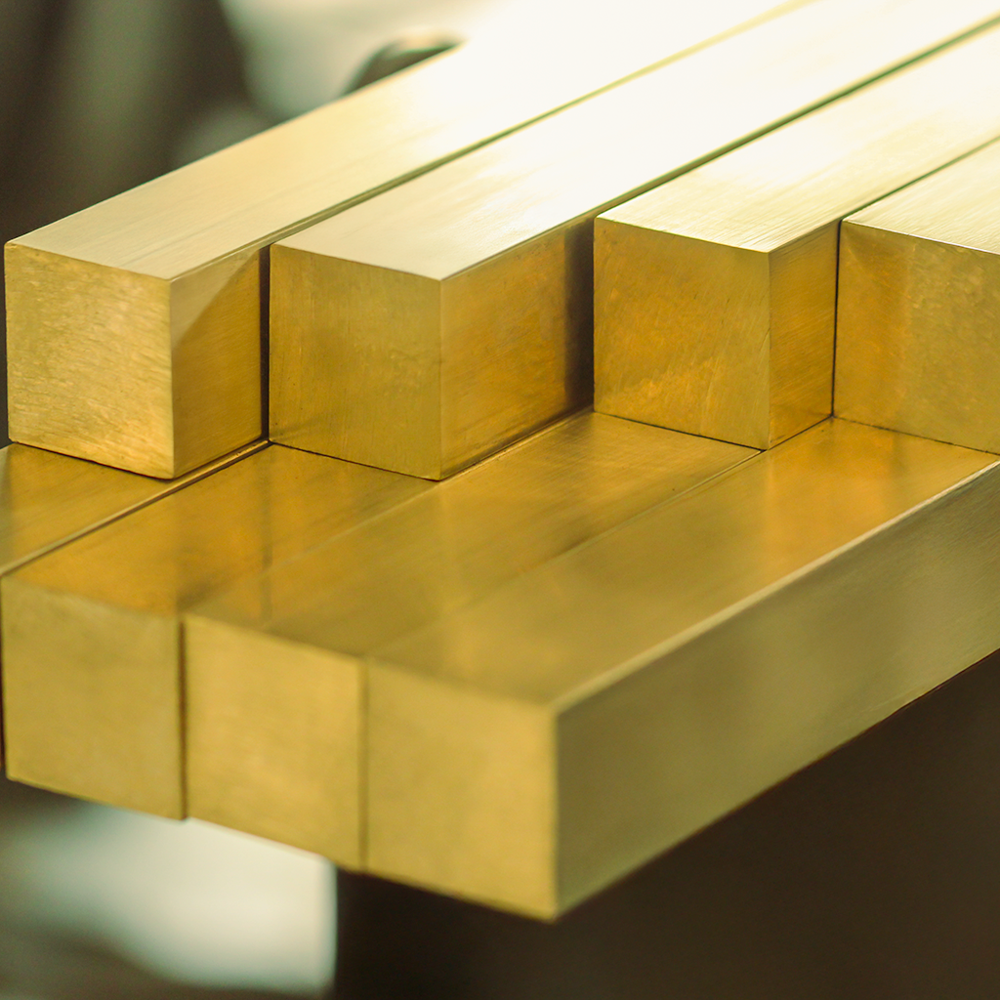

C3712 Forging Brass

C3712 Forging Brass Specification

Usage
Automotive, Builders Hardware, Consumer Fasteners, Industrial Plumbing

Product Type
Architecture, Builders Hardware

Dimension (L*W*H)
16 Foot (ft)

Material
Brass

Color
Golden

Processing Type
Extruded & Drawn

Size
1.5mm to 125mm

Tolerance
1.5 to 125 Millimeter (mm)

Surface Finishing
Bright

Application
Automotive, Builders Hardware, Consumer Fasteners, Industrial Plumbing

Finish
Extruded & Drawn

Grade
C3712

Alloy
Yes

Temper
1/2 Hard

Length
16 Foot (ft)

Shape
Round

Diameter
1.5 Millimeter (mm)

Warranty
NA

C3712 Forging Brass Trade Information

Minimum Order Quantity
2000 Kilograms

Delivery Time
4 Week

About C3712 Forging Brass

C3712, Engraving brass, are 60/40 alpha-beta brasses with different levels of lead added to give free machining properties. They are widely used for engraved plates and plaques, builders hardware, gears. They should not be used for acid etched work, for which the single-phase alpha brasses should be used.

Chemical Composition

Elements	Min (%)	Max (%)
Cu	58.00	62.00
Pb	0.25	1.20
Fe+Sn	-	0.80
Zn	Remainder

Mechanical Properties According To JIS C3712 (As Per Temper BD)

Range (mm)	From	To	UTS Min (MPa)	PS Min	Elongation Min (%)	Hardness Min	Hardness Max
Round (Dia)	6	75	315	-	15	-	-
Hex (A/F)	6	70	315	-	15	-	-
Square (A/F)	6	60	315	-	15	-	-
Rectangle (Thickness)	6	50	315	-	15	-	-

Physical Properties

Melting Point Liquidus F	1650
Melting Point Solidus F	1630
Density lb/cu in. at 68F	0.304
Specific Gravity	8.41
Electrical Conductivity % IACS at 68F	27
Thermal Conductivity Btu/ sq ft/ ft hr/ F at 68F	69
Coefficient of Thermal Expansion 68-57210 per F (68 572F)	11.6
Specific Heat Capacity Btu/ lb /F at 68F	0.09
Modulus of Elasticity in Tension ksi	15000
Modulus of Rigidity ksi	5600

Fabrication Properties

Technique	Suitability
Soldering	Excellent
Brazing	Good
Oxyacetylene Welding	Not Recommended
Gas Shielded Arc Welding	Not Recommended
Coated Metal Arc Welding	Not Recommended
Spot Weld	Not Recommended
Seam Weld	Not Recommended
Butt Weld	Fair
Capacity for Being Cold Worked	Fair
Capacity for Being Hot Formed	Excellent
Machinability Rating	70
