C3602 Free Machining Brass

C3602 Free Machining Brass Specification

Color
Golden

Processing Type
Extruded & Drawn

Surface Finishing
Bright

Finish
Extruded & Drawn

Product Type
Bars, Rods, Billets, Coils, Hollows, Ingots

Usage
Automotive, Builders Hardware, Consumer Fasteners, Industrial Plumbing

Tolerance
1.5 to 125 Millimeter (mm)

Material
Brass

Application
Automotive, Builders Hardware, Consumer Fasteners, Industrial Plumbing

Dimension (L*W*H)
16 Foot (ft)

Size
1.5mm to 125mm

Grade
C3602

Alloy
Yes

Temper
1/2 Hard

Length
16 Foot (ft)

C3602 Free Machining Brass Trade Information

Minimum Order Quantity
2000 Kilograms

Delivery Time
4 Week

About C3602 Free Machining Brass

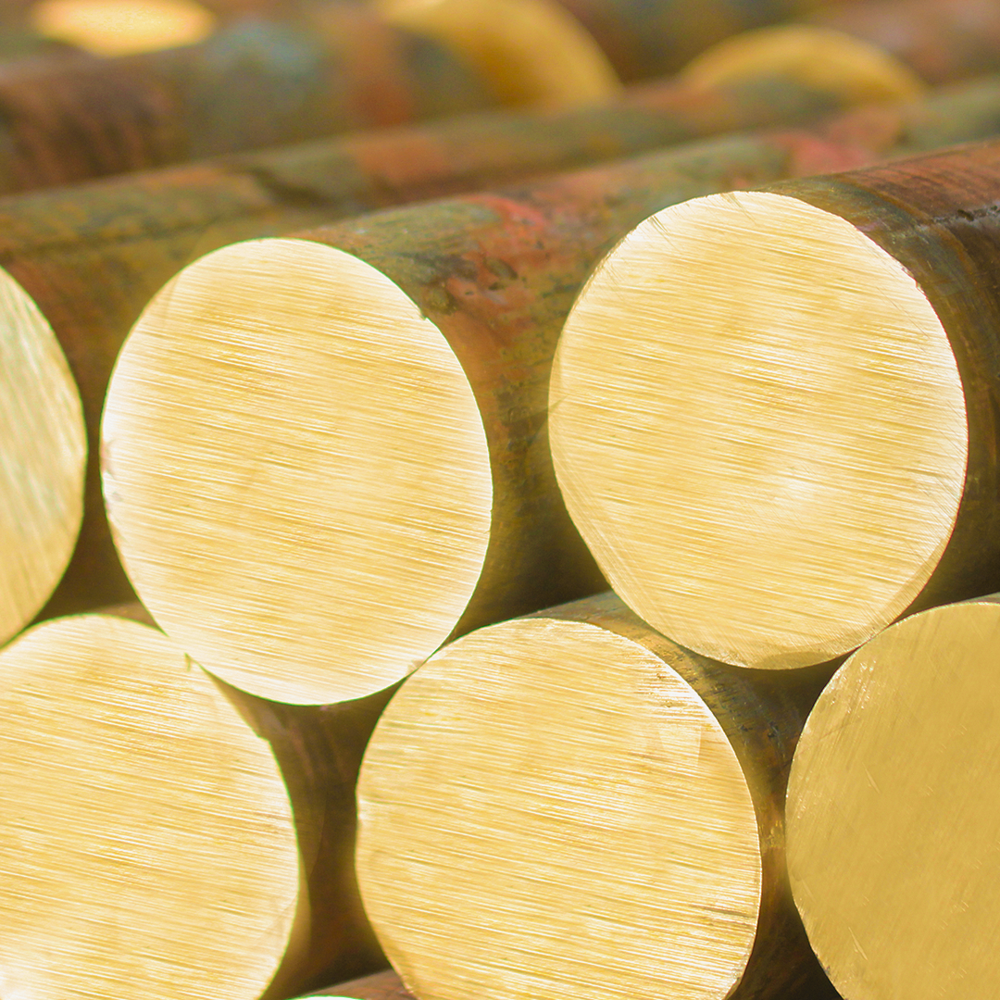

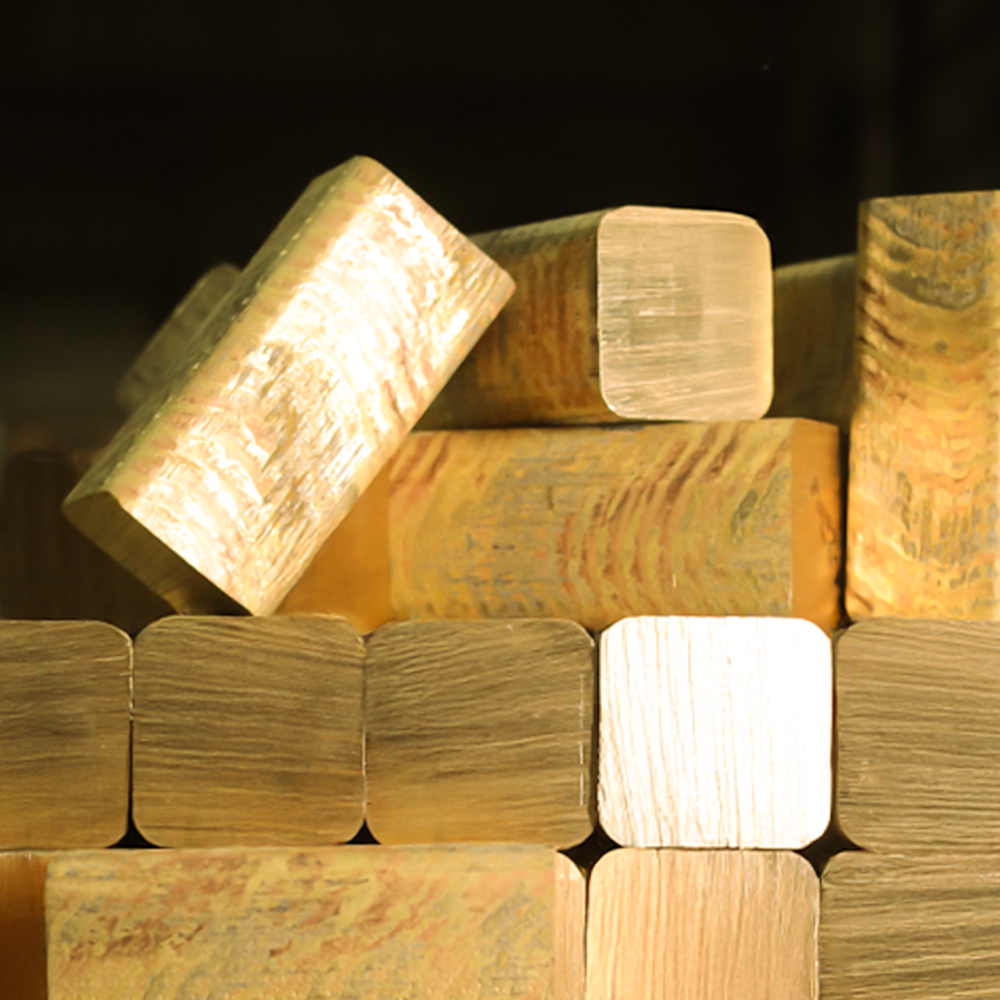

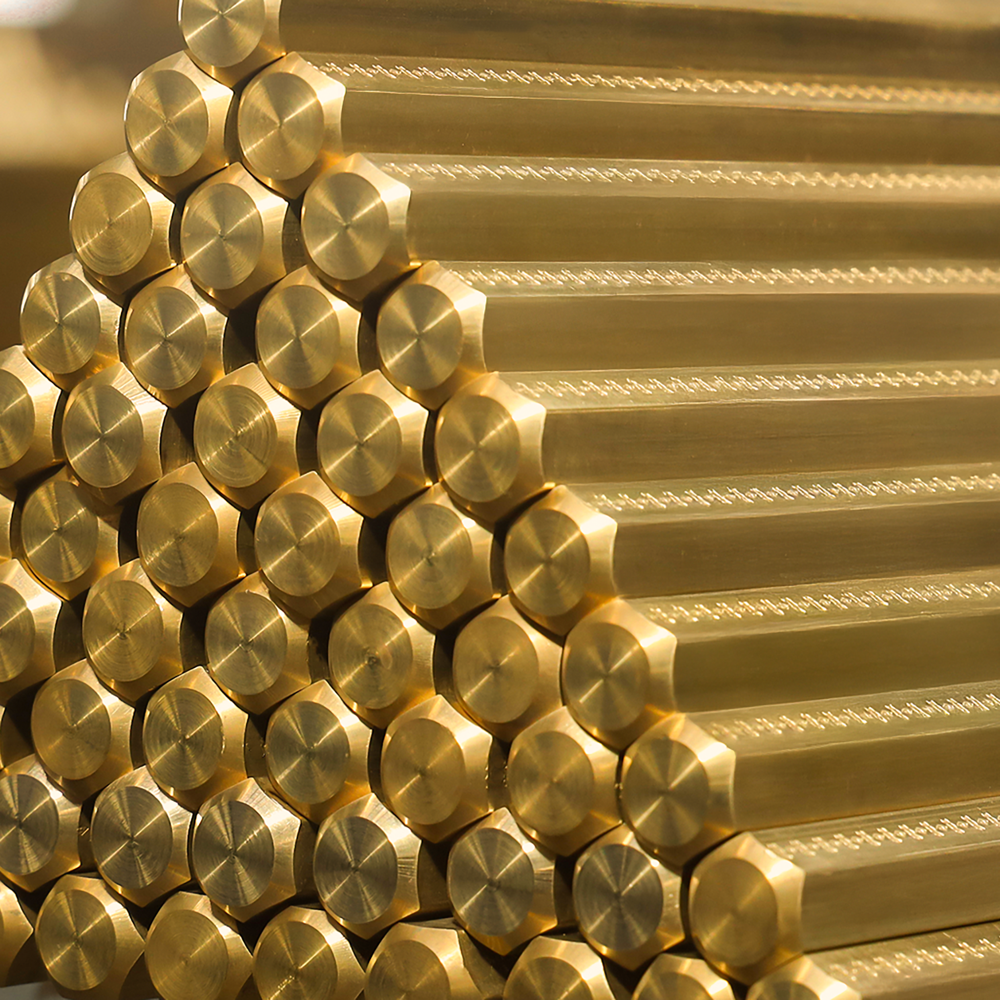

C3602 Free machining brass, produced from a combination of copper and zinc, has the highest machinability of all copper alloys, and is the standard against which all the others are compared to. C3602 Brass, known for its strength and resistance to corrosion with properties closely resembling that of steel, is one of the most popular copper alloys used today. C3602 Brass can be precision machined easily. Although ductile in its softened state, C3602Brass is a strong material to work with and maintains its strength even under some of the most demanding conditions. C3602 Brass forms a thin protective patina, which, unlike steel and iron, will not rust when exposed to the atmosphere. As a high-density material, C3602 Brass is ideal for heavy industrial parts. C3602 Brass is also valued for its high polished finish. C3602 Brass is available in Rounds, Flats, Squares, Hexagons, Shapes and Hollows.

Chemical Composition

Elements	Min (%)	Max (%)
Cu	59.00	63.00
Pb	1.80	3.70
Sn + Fe	-	1.20
Fe	-	0.30
Zn	Remainder

Mechanical Properties according To H3250 JIS C3602 (As Per Temper BD)

Range	From	To	UTS Min (N/mm)	PS Min	Elongation Min (%)	Hardness Min (HV)	Hardness Max
Round (Dia)	1.5	75	315	-	-	75	-
Hex (A/F)	3	70	315	-	-	75	-
Square (A/F)	3	60	315	-	-	75	-
Rectangle (Thickness)	3	50	315	-	-	75	-

Physical Properties

Melting Point Liquidus F	1650
Melting Point Solidus F	1630
Density lb/cu in. at 68F	0.307
Specific Gravity	8.5
Electrical Conductivity% IACS at 68F	26
Thermal Conductivity Btu/ sq ft/ ft hr/ F at 68F	67
Coefficient of Thermal Expansion 68-57210 per F (68 572F)	11.4
Specific Heat Capacity Btu/ lb /F at 68F	0.09
Modulus of Elasticity in Tension ksi	14000
Modulus of Rigidity ksi	5300

Fabrication Properties

Technique	Suitability
Soldering	Excellent
Brazing	Good
Oxyacetylene Welding	Not Recommended
Gas Shielded Arc Welding	Not Recommended
Coated Metal Arc Welding	Not Recommended
Spot Weld	Not Recommended
Seam Weld	Not Recommended
Butt Weld	Fair
Capacity for Being Cold Worked	Fair
Capacity for Being Hot Formed	Fair
Machinability Rating	100
