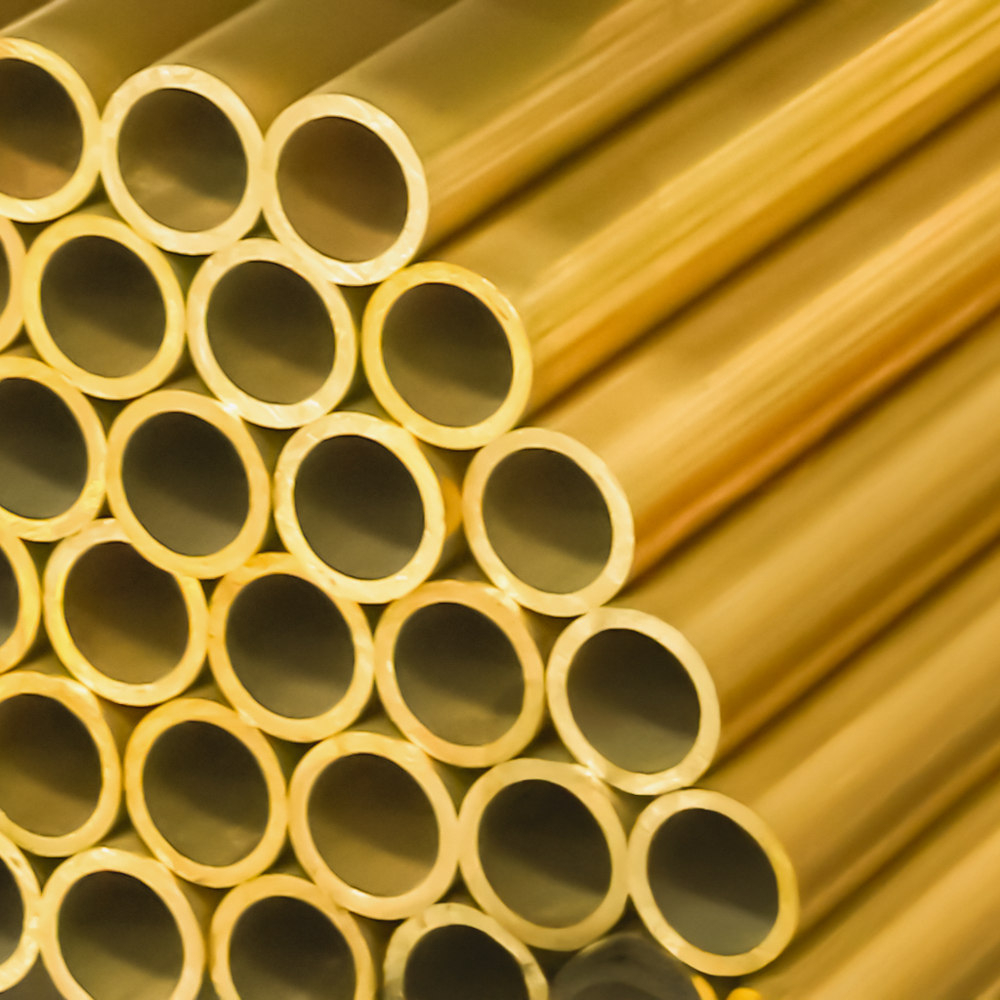

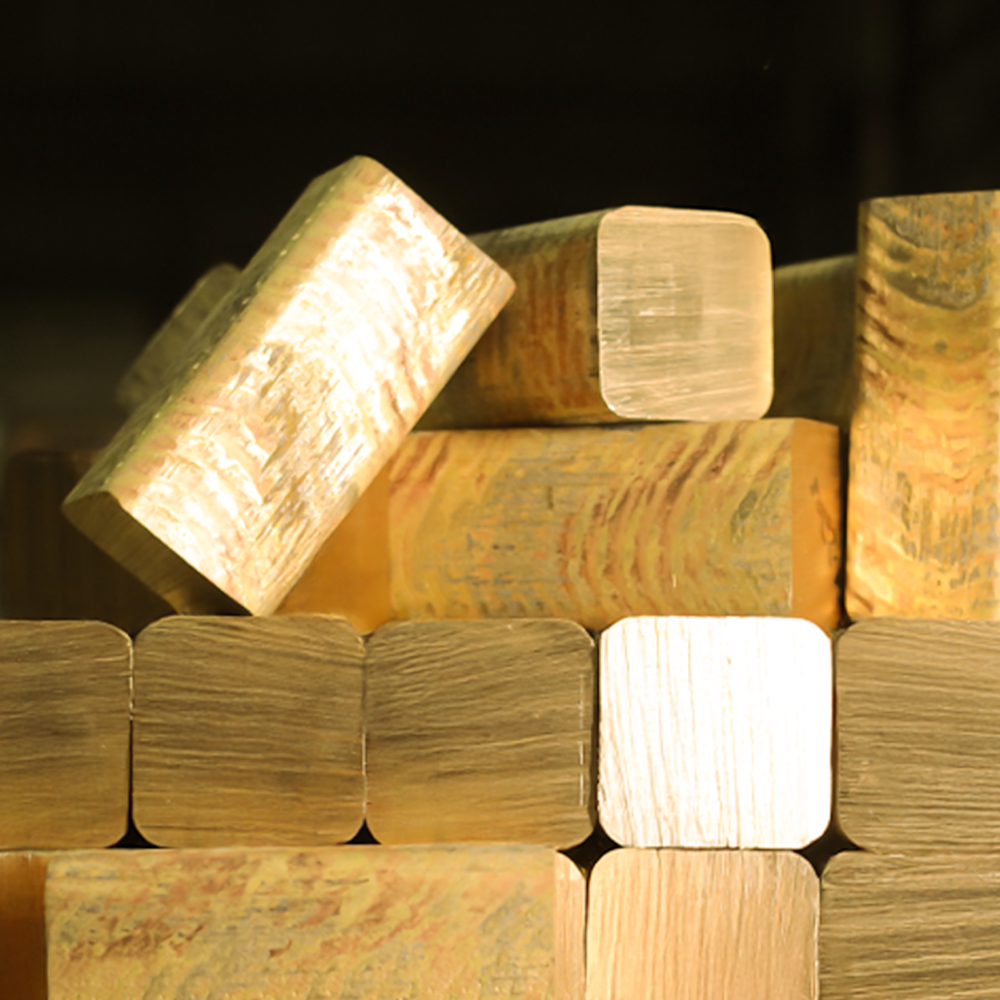

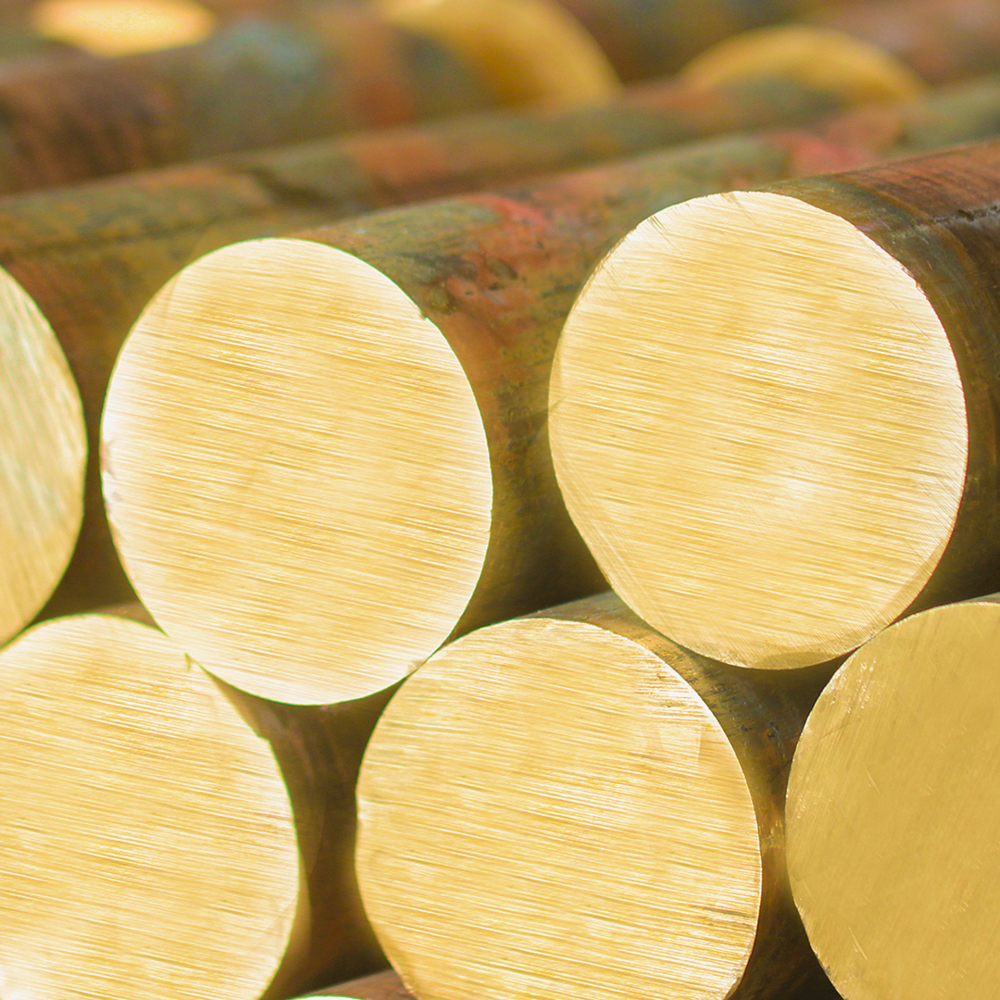

C3601 Free Machining Brass

C3601 Free Machining Brass Specification

Product Type
Bars, Rods, Billets, Coils, Hollows, Ingots

Processing Type
Extruded & Drawn

Size
1.5 to 125

Color
Golden

Material
Brass

Surface Finishing
Bright

Application
Automotive, Builders Hardware, Consumer, Fasteners, Industrial, Plumbing

Finish
Extruded & Drawn

Dimension (L*W*H)
16 Foot (ft)

Tolerance
1.5 to 125 Millimeter (mm)

Usage
Automotive, Builders Hardware, Consumer, Fasteners, Industrial, Plumbing

Grade
C3601

Alloy
Yes

Temper
1/2 Hard

Length
16 Foot (ft)

Shape
Round

Diameter
1.5 Millimeter (mm)

Weight (kg)
125 Kilograms (kg)

Warranty
NA

C3601 Free Machining Brass Trade Information

Minimum Order Quantity
2000 Kilograms

Delivery Time
4 Week

About C3601 Free Machining Brass

C3601 Free machining brass, produced from a combination of copper and zinc, has the highest machinability of all copper alloys, and is the standard against which all the others are compared to. C3601 Brass, known for its strength and resistance to corrosion with properties closely resembling that of steel, is one of the most popular copper alloys used today. C3601 Brass can be precision machined easily. Although ductile in its softened state, C3601 Brass is a strong material to work with and maintains its strength even under some of the most demanding conditions. C3601 Brass forms a thin protective patina, which, unlike steel and iron, will not rust when exposed to the atmosphere. As a high-density material, C3601 Brass is ideal for heavy industrial parts. C3601 Brass is also valued for its high polished finish. C3601 Brass is available in rounds, flats, squares, hexagons, tube, plate, and sheet.

Chemical Composition

Elements	Min (%)	Max (%)
Cu	59.00	63.00
Pb	1.80	3.70
Fe	-	0.30
Sn + Fe	-	0.50
Zn	Remainder

Mechanical Properties according To H3250 JIS C3601 (As Per Temper BD)

Range	From	To	UTS Min (N/mm)	PS Min	Elongation (%)	Hardness Min	Hardness Max
Round (Dia)	6	50	345	-	-	-	-
Hex (A/F)	6	50	345	-	-	-	-
Square (A/F)	6	50	345	-	-	-	-
Rectangle (Thickness)	6	50	345	-	-	-	-

Physical Properties

Melting Point - LiquidusF	1650
Melting Point - SolidusF	1630
Densitylb/cu in. at 68F	0.307
Specific Gravity	8.5
Electrical Conductivity% IACS at 68F	26
Thermal ConductivityBtu/ sq ft/ ft hr/ F at 68F	67
Coefficient of Thermal Expansion 68-57210 per F (68 572F)	11.4
Specific Heat CapacityBtu/ lb /F at 68F	0.09
Modulus of Elasticity in Tensionksi	14000
Modulus of Rigidityksi	5300

Fabrication Properties

Technique	Suitability
Soldering	Excellent
Brazing	Good
Oxyacetylene Welding	Not Recommended
Gas Shielded Arc Welding	Not Recommended
Coated Metal Arc Welding	Not Recommended
Spot Weld	Not Recommended
Seam Weld	Not Recommended
Butt Weld	Fair
Capacity for Being Cold Worked	Fair
Capacity for Being Hot Formed	Fair
Machinability Rating	100
