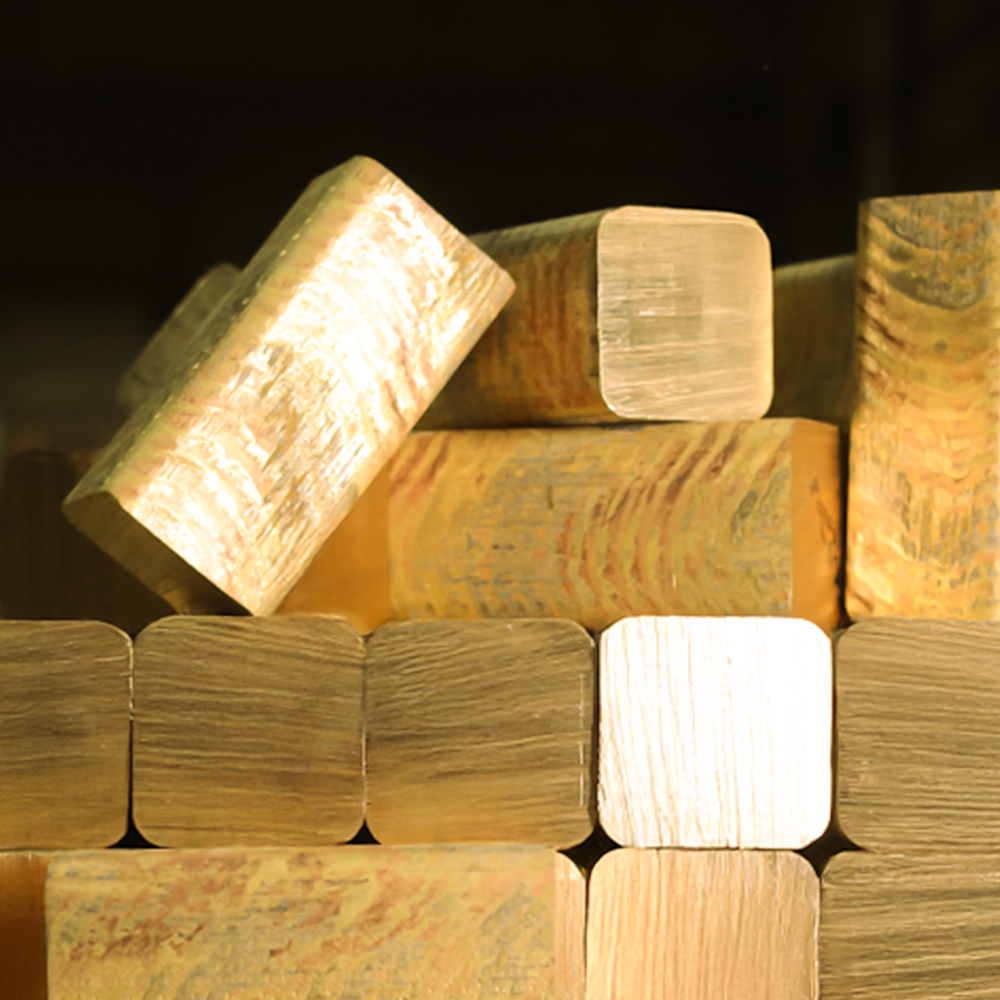

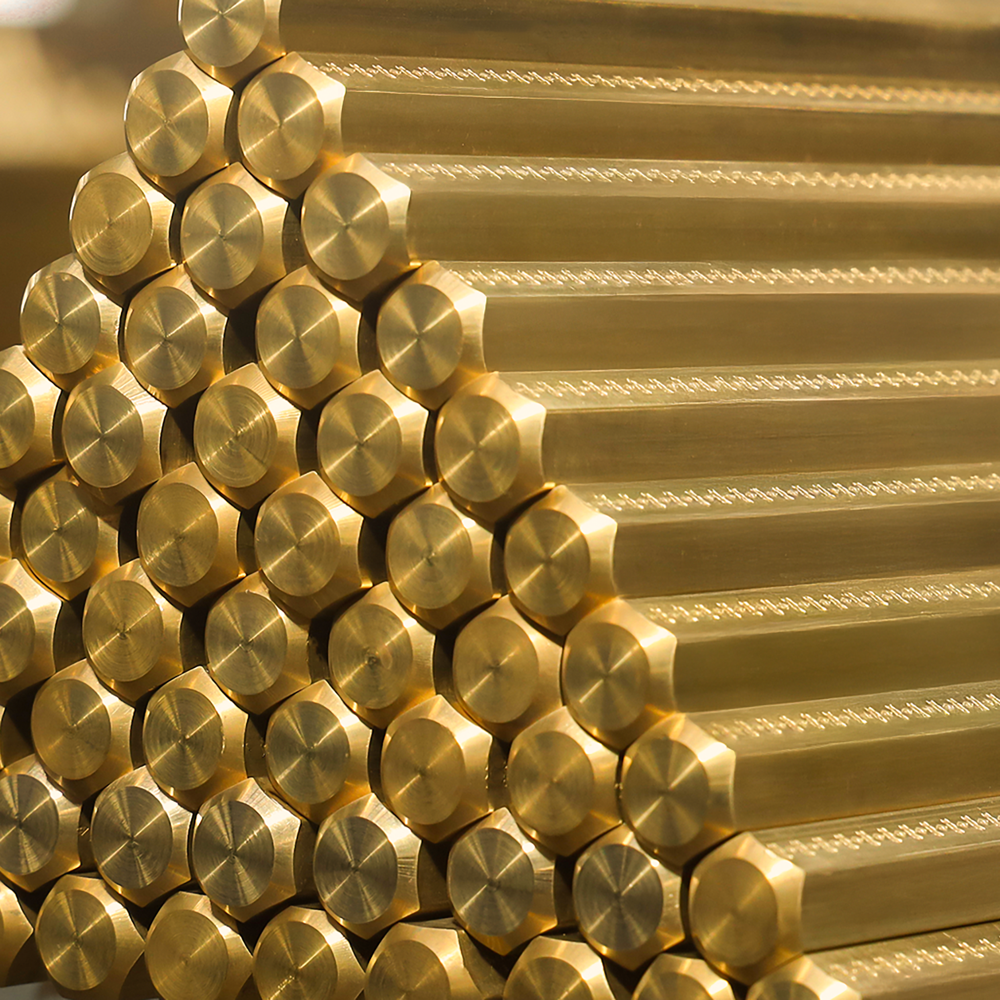

C36000 Free Machining Brass

C36000 Free Machining Brass Specification

Product Type
Bars, Rods, Billets, Coils, Hollows, Ingots

Processing Type
Extruded & Drawn

Tolerance
1.5 to 125 Millimeter (mm)

Dimension (L*W*H)
16 Foot (ft)

Material
Brass

Usage
Automotive, Builders Hardware, Consumer Fasteners, Industrial Plumbing

Color
Golden

Finish
Extruded & Drawn

Surface Finishing
Bright

Application
Automotive, Builders Hardware, Consumer Fasteners, Industrial Plumbing

Size
1.5mm to 125mm

Grade
C36000

Alloy
Yes

Temper
1/2 Hard

Length
16 Foot (ft)

Shape
Round

Diameter
1.5 Millimeter (mm)

C36000 Free Machining Brass Trade Information

Minimum Order Quantity
2000 Kilograms

Delivery Time
4 Week

About C36000 Free Machining Brass

C36000 (HO2) Free machining brass, produced from a combination of copper and zinc, has the highest machinability of all copper alloys, and is the standard against which all the others are compared to. 360 Brass, known for its strength and resistance to corrosion with properties closely resembling that of steel, is one of the most popular copper alloys used today. 360 Brass can be precision machined easily. Although ductile in its softened state, 360 Brass is a strong material to work with and maintains its strength even under some of the most demanding conditions. 360 Brass forms a thin protective patina, which, unlike steel and iron, will not rust when exposed to the atmosphere. As a high-density material, 360 Brass is ideal for heavy industrial parts. 360 Brass is also valued for its high polished finish. 360 Brass is available in rounds, flats, squares, hexagons, tube, plate, and sheet.

CHEMICAL COMPOSITION

Elements	Min (%)	Max (%)
Cu	60.00	63.00
Pb	2.50	3.00
Fe	-	0.35
Total Others	-	0.50
Zn	Remainder

MECHANICAL PROPERTIES ACCORDING TO ASTM B16 (AS PER TEMPER HO2)

Range (inch)	From	To	UTS Min (ksi)	UTS Max (ksi)	PS Min (ksi)	Elongation Min (%)	Hardness Min (HRB)	Hardness Max (HRB)
Round (Dia)	0.059	0.500	57	-	25	7	-	-
0.500	1.000	55	-	25	10	60	80
1.000	2.000	50	-	20	15	55	75
2.000	2.953	45	-	15	20	45	70
Hex (A/F)	0.118	0.500	57	-	25	7	-	-
0.500	1.000	55	-	25	10	60	80
1.000	2.000	50	-	20	15	45	80
2.000	2.756	45	-	15	20	40	65
Square (A/F)	0.118	0.500	57	-	25	7	-	-
0.500	1.000	55	-	25	10	55	80
1.000	2.000	50	-	20	15	45	80
2.000	2.362	45	-	15	20	40	65
Octagon (A/F)	0.118	0.500	57	-	25	7	-	-
0.500	1.000	55	-	25	10	55	80
1.000	2.000	50	-	20	15	45	80
2.000	2.362	45	-	15	20	40	65
Rectangle	Thickness	0.118	0.500	50	-	25	10	45	85
Width	0.118	1.000
Thickness	0.118	0.500	45	-	17	15	35	70
Width	1.000	2.756
Thickness	0.500	1.969	45	-	17	15	40	80
Width	0.079	2.000
Thickness	0.500	1.968	40	-	15	20	35	70
Width	2.000	2.756

Range (mm)	From	To	UTS Min (MPa)	UTS Max (MPa)	PS Min (MPa)	Elongation Min (%)	Hardness Min (HRB)	Hardness Max (HRB)
Round (Dia)	1.5	12	395	-	170	7	-	-
12	25	380	-	170	10	60	80
25	50	345	-	140	15	55	75
50	75	310	-	105	20	45	70
Hex (A/F)	3	12	395	-	170	7	-	-
12	25	380	-	170	10	55	80
25	50	345	-	140	140	45	80
50	70	310	-	105	20	40	65
Square (A/F)	3	12	395	-	170	7	-	-
12	25	380	-	170	10	55	80
25	50	345	-	140	15	45	80
50	60	310	-	105	20	40	65
Octagon (A/F)	3	12	395	-	70	7	-	-
12	25	380	-	170	10	55	80
25	50	345	-	140	15	45	80
50	60	310	-	105	20	40	65
Rectangle	Thickness	3	12	345	-	170	10	45	85
Width	4	25
Thickness	3	12	310	-	115	15	35	70
Width	25	70
Thickness	12	50	310	-	115	15	40	80
Width	4	50
Thickness	12	50	275	-	105	20	35	70
Width	50	70

PHYSICAL PROPERTIES
Melting Point - Liquidus F	1650
Melting Point - Solidus F	1630
Density lb/cu in at 68F	0.307
Specific Gravity	8.5
Electrical Conductivity %IACS at 68F	26
Thermal Conductivity BTU/ sq ft/ ft hr/ F at 68F	67
Coefficient of Thermal Expansion 68-572 10 per F (68 572F)	11.4
Specific Heat BTU/ lb /F at 68F	0.09
Modulus of Elasticity in Tension ksi	14000
Modulus of Rigidity ksi	5300

FABRICATION PROPERTIES
Technique	Suitability
Soldering	Excellent
Brazing	Good
Oxyacetylene Welding	Not Recommended
Gas Shielded Arc Welding	Not Recommended
Coated Metal Arc Welding	Not Recommended
Spot Weld	Not Recommended
Seam Weld	Not Recommended
Butt Weld	Fair
Capacity for Being Cold Worked	Fair
Capacity for Being Hot Formed	Fair
Machinability Rating	100
