CW603N Free Machining Brass

CW603N Free Machining Brass Specification

Color
Golden

Processing Type
Extruded & Drawn

Size
1.5mm to 125mm

Application
Automotive, Builders Hardware, Consumer Fasteners, Industrial Plumbing

Product Type
Bars, Rods, Billets, Coils, Hollows, Ingots

Tolerance
1.5 to 125 Millimeter (mm)

Surface Finishing
Bright

Material
Brass

Dimension (L*W*H)
16 Foot (ft)

Usage
Automotive, Builders Hardware, Consumer Fasteners, Industrial Plumbing

Finish
Extruded & Drawn

Grade
CW603N

Alloy
Yes

Temper
1/2 Hard

Length
16 Foot (ft)

Shape
Round

Diameter
1.5 Millimeter (mm)

Warranty
NA

CW603N Free Machining Brass Trade Information

Minimum Order Quantity
2000 Kilograms

Delivery Time
4 Week

About CW603N Free Machining Brass

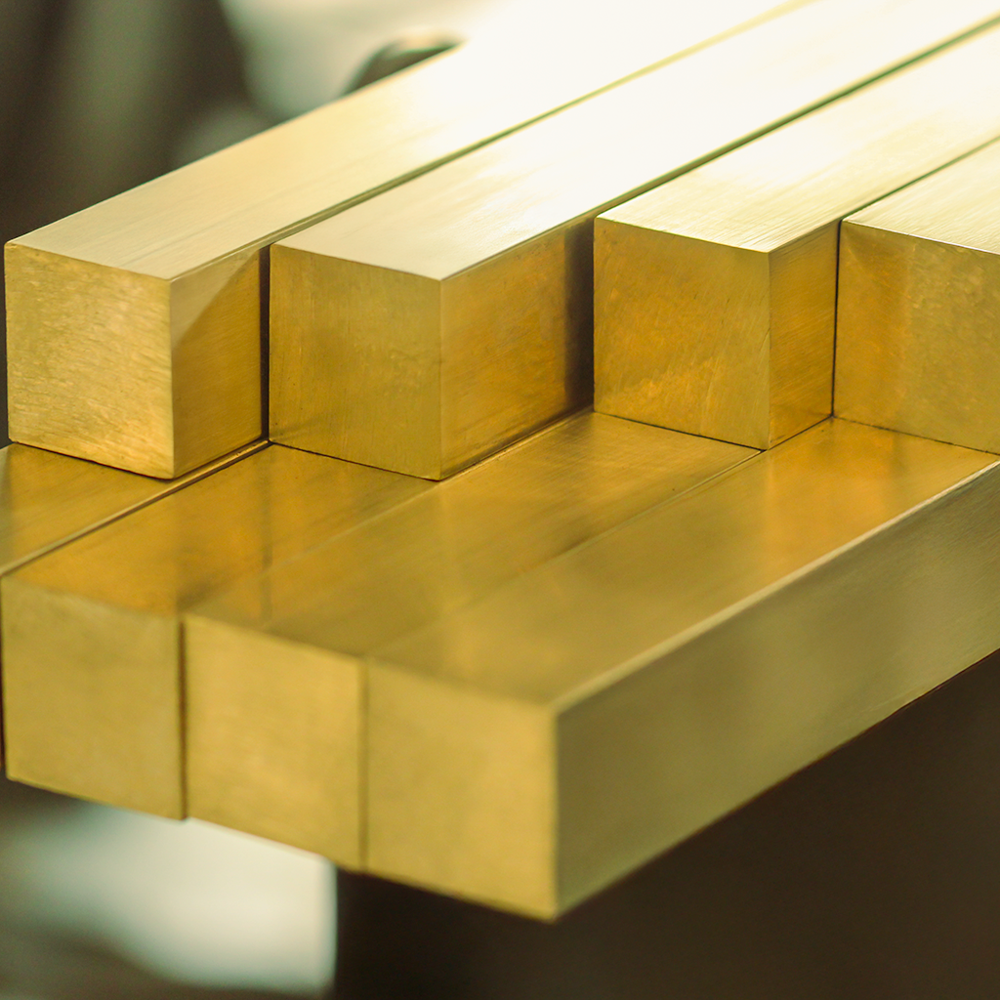

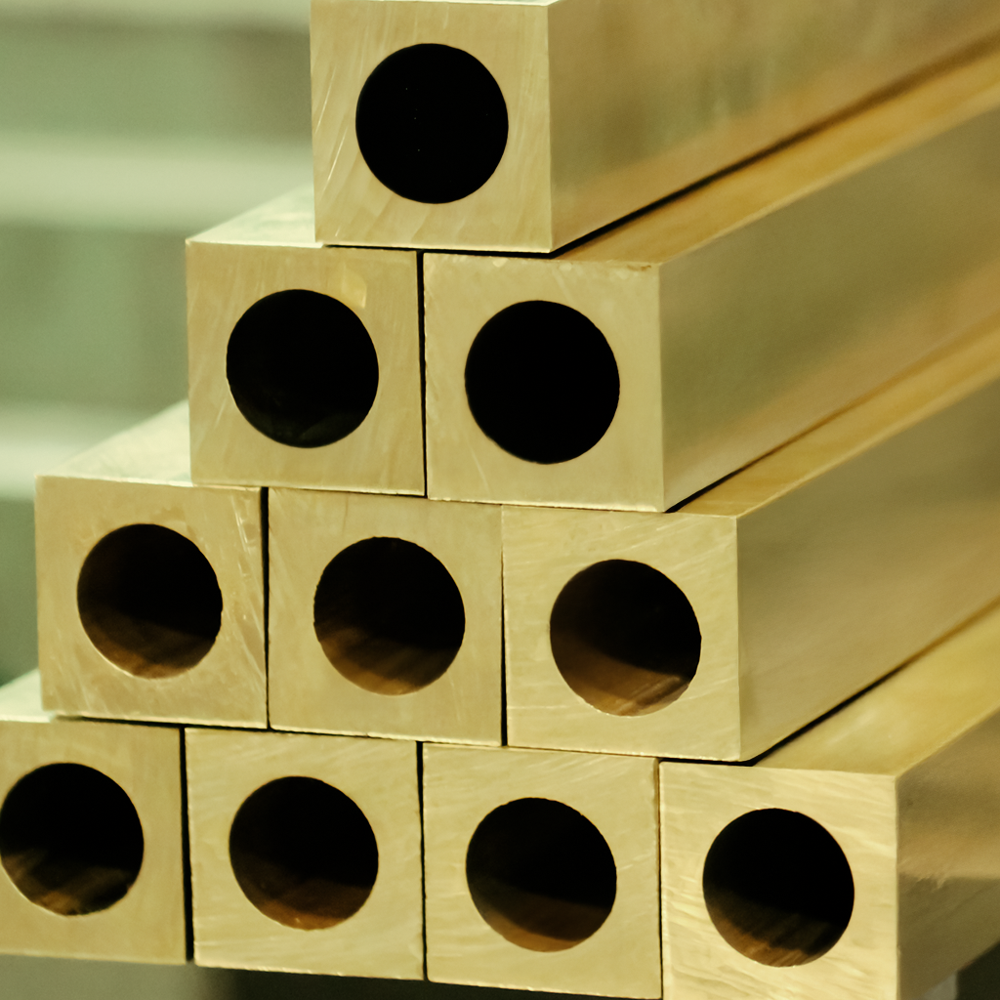

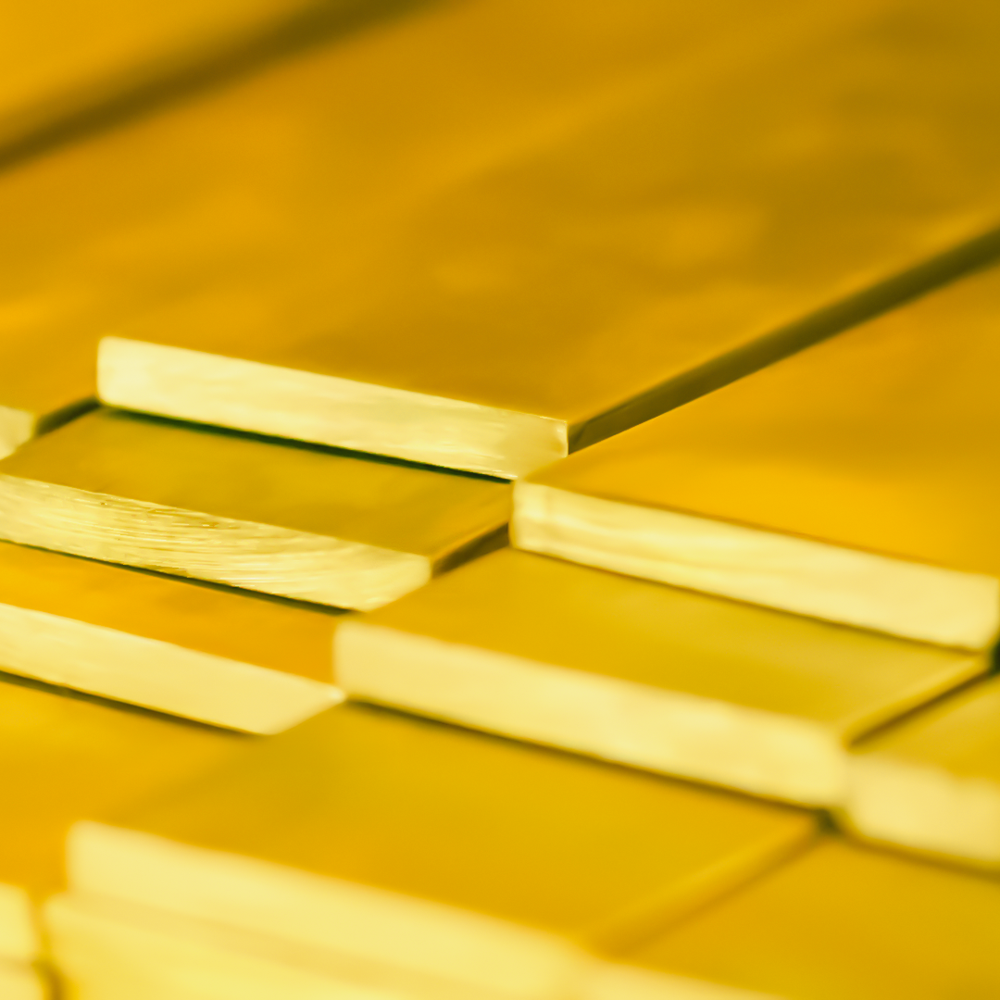

CW603N Free machining brass, produced from a combination of copper and zinc, has the highest machinability of all copper alloys, and is the standard against which all the others are compared to. CW603N Brass, known for its strength and resistance to corrosion with properties closely resembling that of steel, is one of the most popular copper alloys used today. CW603N Brass can be precision machined easily. Although ductile in its softened state, CW603N Brass is a strong material to work with and maintains its strength even under some of the most demanding conditions. CW603N Brass forms a thin protective patina, which, unlike steel and iron, will not rust when exposed to the atmosphere. As a high-density material, CW603N Brass is ideal for heavy industrial parts. CW603N Brass is also valued for its high polished finish. CW603N Brass is available in Rounds, Flats, Squares, Hexagons, Shapes and Hollows.

Chemical Composition

Elements	Min (%)	Max (%)
Cu	60.00	62.00
Pb	2.50	3.50
Sn	-	0.20
Fe	-	0.30
Al	-	0.05
Ni	-	0.30
Total Others	-	0.20
Zn	Remainder

Mechanical Properties according To EN12164 (As Per Temper R400)

Range (mm)	From	To	UTS Min (N/mm)	PS Min (N/mm)	Elongation (%)	Hardness Min	Hardness Max
Round (Dia)	2	20	400	200	12	-	-
Hex (A/F)	2	25	400	200	12	-	-
Square (A/F)	2	25	400	200	12	-	-

Physical Properties

Melting Point Liquidus F	1650
Melting Point Solidus F	1630
Density lb/cu in. at 68F	0.307
Specific Gravity	8.5
Electrical Conductivity% IACS at 68F	26
Thermal Conductivity Btu/ sq ft/ ft hr/ F at 68F	67
Coefficient of Thermal Expansion 68-57210 per F (68 572F)	11.4
Specific Heat Capacity Btu/ lb /F at 68F	0.09
Modulus of Elasticity in Tension ksi	14000
Modulus of Rigidity ksi	5300

Fabrication Properties

Technique	Suitability
Soldering	Excellent
Brazing	Good
Oxyacetylene Welding	Not Recommended
Gas Shielded Arc Welding	Not Recommended
Coated Metal Arc Welding	Not Recommended
Spot Weld	Not Recommended
Seam Weld	Not Recommended
Butt Weld	Fair
Capacity for Being Cold Worked	Fair
Capacity for Being Hot Formed	Fair
Machinability Rating	100
