C36010 Free Machining Brass

C36010 Free Machining Brass Specification

Size
1.5mm to 125mm

Finish
Extruded & Drawn

Color
Golden

Tolerance
1.5 to 125 Millimeter (mm)

Material
Brass

Product Type
Bars, Rods, Billets, Coils, Hollows, Ingots

Dimension (L*W*H)
16 Foot (ft)

Application
Automotive, Builders Hardware, Consumer Fasteners, Industrial Plumbing

Usage
Automotive, Builders Hardware, Consumer Fasteners, Industrial Plumbing

Surface Finishing
Bright

Processing Type
Extruded & Drawn

Grade
C36010

Alloy
Yes

Temper
1/2 Hard

Length
16 Foot (ft)

Shape
Round

Diameter
1.5 Millimeter (mm)

Warranty
NA

C36010 Free Machining Brass Trade Information

Minimum Order Quantity
2000 Kilograms

Delivery Time
4 Week

About C36010 Free Machining Brass

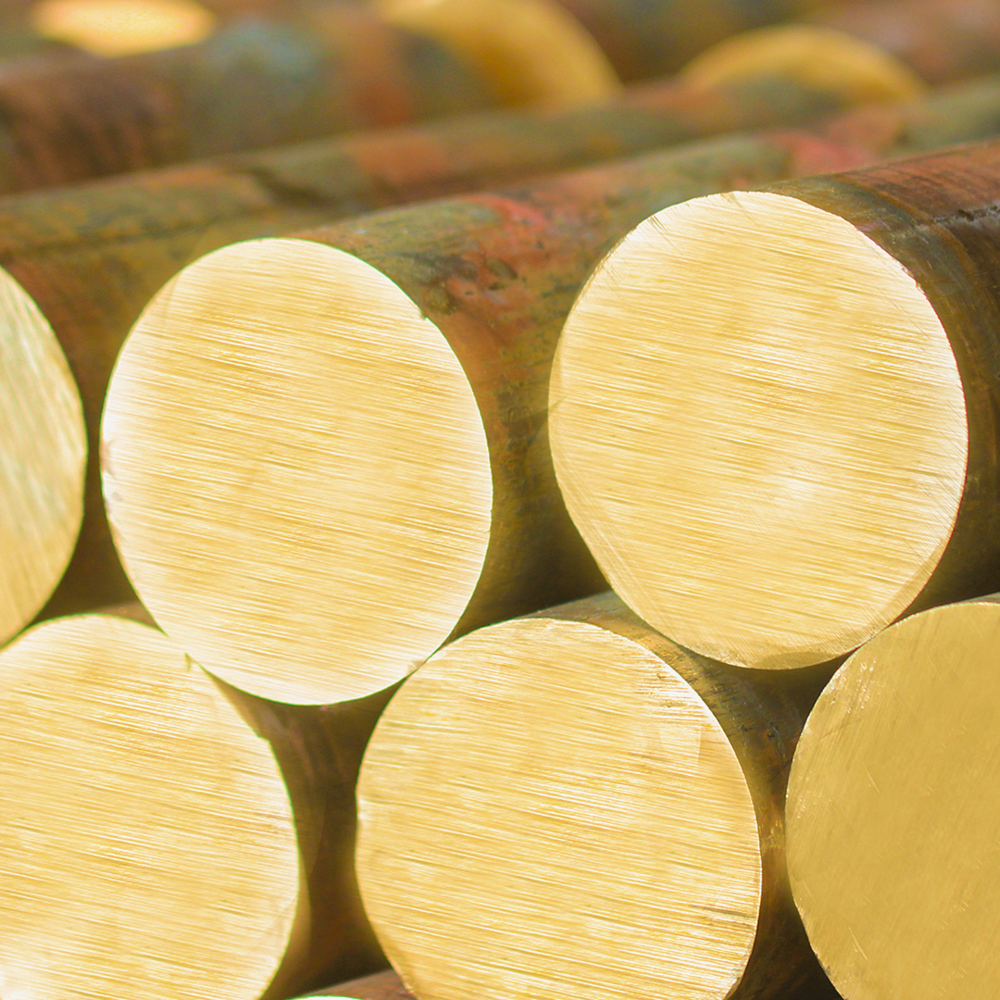

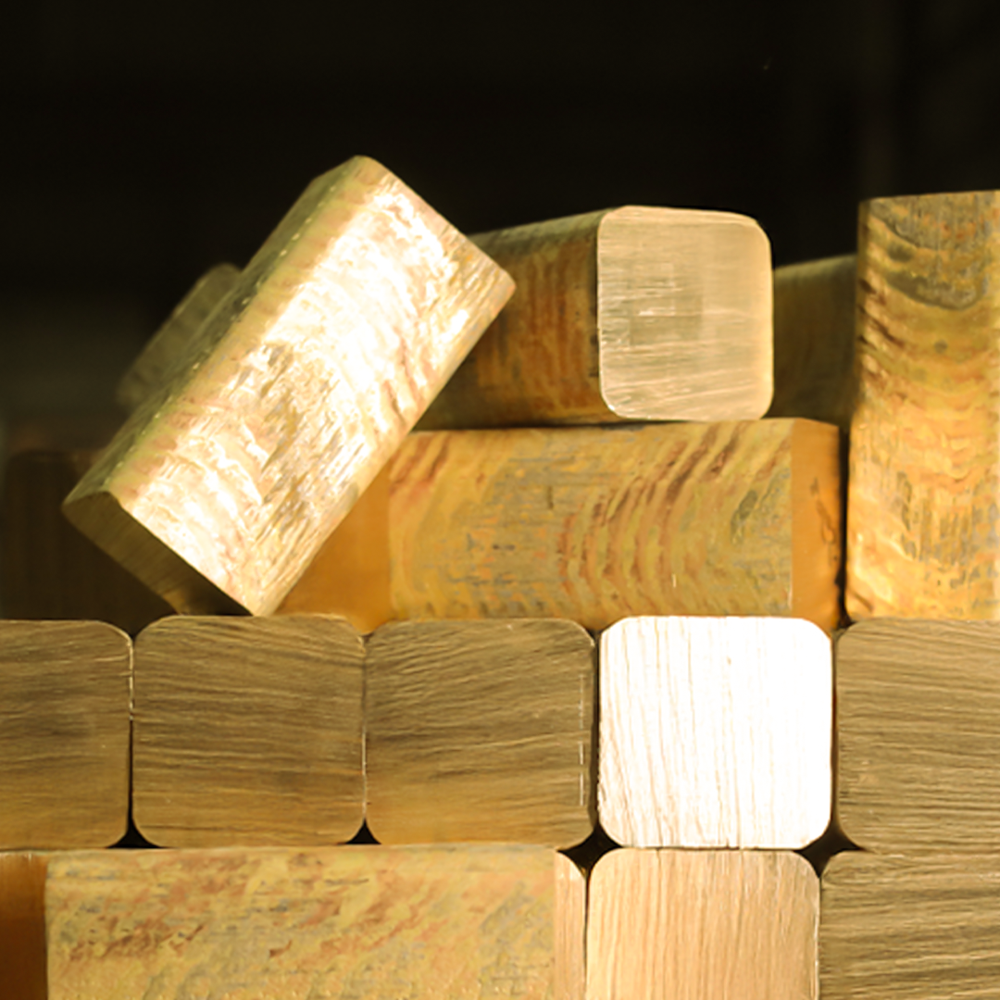

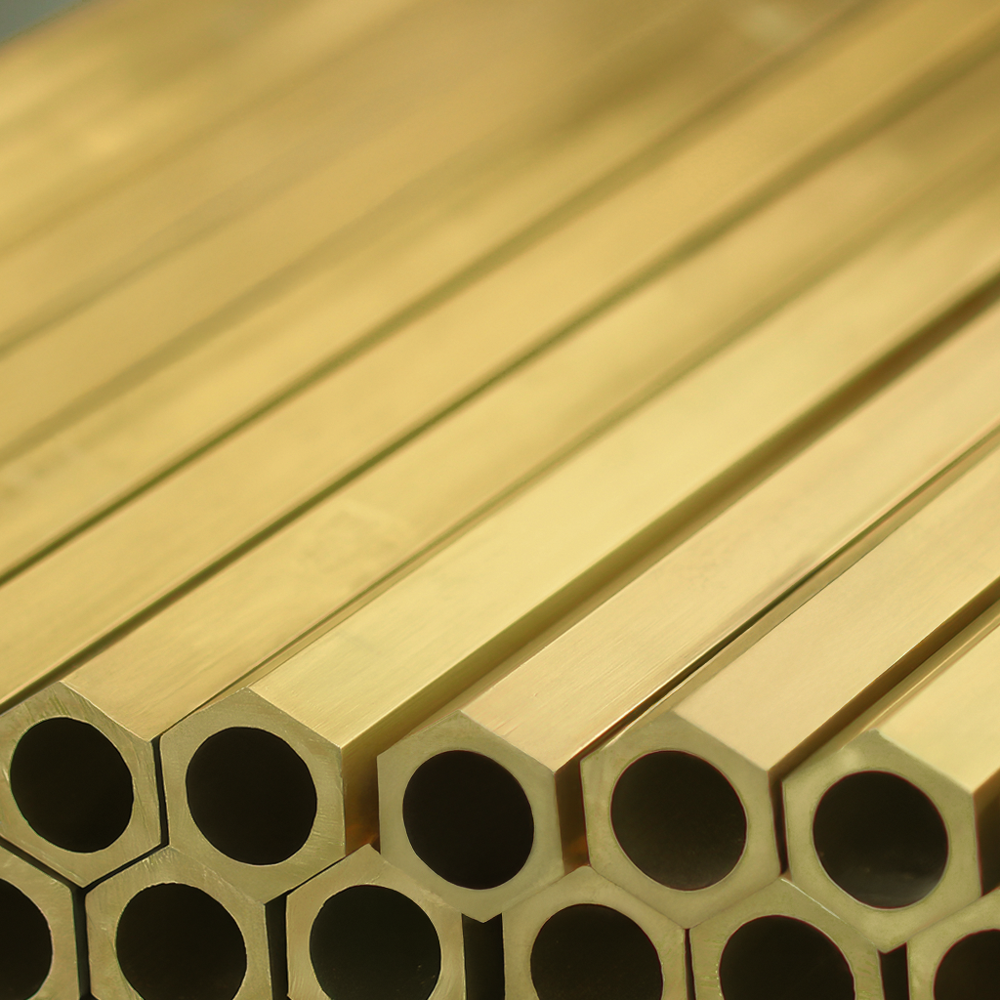

C36010 Free machining brass, produced from a combination of copper and zinc, has the highest machinability of all copper alloys, and is the standard against which all the others are compared to. C36010 Brass, known for its strength and resistance to corrosion with properties closely resembling that of steel, is one of the most popular copper alloys used today. C36010 Brass can be precision machined easily. Although ductile in its softened state, C36010 Brass is a strong material to work with and maintains its strength even under some of the most demanding conditions. C36010 Brass forms a thin protective patina, which, unlike steel and iron, will not rust when exposed to the atmosphere. As a high-density material, C36010 Brass is ideal for heavy industrial parts. C36010 Brass is also valued for its high polished finish. C36010 Brass is available in Rounds, Flats, Squares, Hexagons, Shapes and Hollows.

Chemical Composition

Elements	Min (%)	Max (%)
Cu	60.00	63.00
Pb	3.10	3.70
Fe	-	0.35
Total Others	-	0.50
Zn	Remainder

Mechanical Properties according To ASTM 16 (As per Temper HO2)

Range (Inch)	From	To	UTS Min (ksi)	PS Min (ksi)	Elongation Min (%)	Hardness Min (HRB)	Hardness Max (HRB)
Round (Dia)	0.059	0.500	57	25	7	-	-
0.500	1.000	55	25	10	60	80
1.000	2.000	50	20	15	55	75
2.000	2.953	45	15	20	45	70
Hex (A/F)	0.118	0.5.00	57	25	7	-	-
0.500	1.000	55	25	10	55	80
1.000	2.000	50	20	15	45	80
2.000	2.756	45	15	20	40	65
Square (A/F)	0.118	0.500	57	25	7	-	-
0.500	1.000	55	25	10	55	80
1.000	2.000	50	20	15	45	80
2.000	2.362	45	15	20	40	65
Octagon (A/F)	0.118	0.500	57	25	7	-	-
0.500	1.000	55	25	10	55	80
1.000	2.000	50	20	15	45	80
2.000	2.362	45	15	20	40	65
Rectangle	Thickness	0.118	0.500	50	25	10	45	85
Width	0.118	1.000
Thickness	0.118	0.500	45	17	15	35	70
Width	1.000	2.756
Thickness	0.500	1.968	45	17	15	40	80
Width	0.079	2.000
Thickness	0.500	1.968	40	15	20	35	70

Range (mm)	From	To	UTS Min (MPa)	PS Min (MPa)	Elongation Min (%)	Hardness Min (HRB)	Hardness Max (HRB)
Round (Dia)	1.5	12	395	170	7	-	-
12	25	380	170	10	60	80
25	50	345	140	15	55	75
50	75	310	105	20	45	70
Hex (A/F)	3	12	395	170	7	-	-
12	25	380	170	10	55	80
25	50	345	140	15	45	80
50	70	310	105	20	40	65
Square (A/F)	3	12	395	170	7	-	-
12	25	380	170	10	55	80
25	50	345	140	15	45	80
50	60	310	105	20	40	65
Octagon (A/F)	3	12	395	170	7	-	-
12	25	380	170	10	55	80
25	50	345	140	15	45	80
50	60	310	105	20	40	65
Rectangle	Thickness	3	12	345	170	10	45	85
Width	4	25
Thickness	3	12	310	115	15	35	70
Width	25	70
Thickness	12	50	310	115	15	40	80
Width	4	50
Thickness	12	50	275	105	20	35	70
Width	50	70

Physical Properties

Melting Point Liquidus F	1650
Melting Point Solidus F	1630
Density lb/cu in. at 68F	0.307
Specific Gravity	8.5
Electrical Conductivity% IACS at 68F	26
Thermal Conductivity Btu/ sq ft/ ft hr/ F at 68F	67
Coefficient of Thermal Expansion 68-57210 per F (68 572F)	11.4
Specific Heat Capacity Btu/ lb /F at 68F	0.09
Modulus of Elasticity in Tension ksi	14000
Modulus of Rigidity ksi	5300
